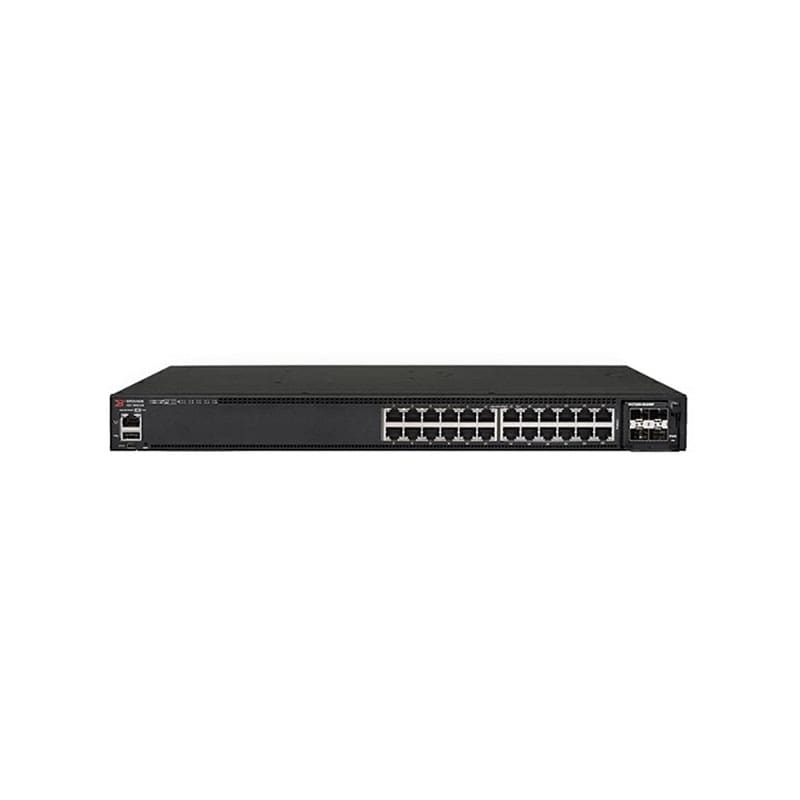

ICX7450-24-E Ruckus ICX 7450-24 Switch 24 ports Managed Rack-mountable

ICX7450-24-E Technical Specifications

Ruckus ICX 7450-24 Switch 24 ports Managed Rack-mountable

Brand: Ruckus
Product Line: Ruckus ICX
Model: 7450-24
Manufacturer: Ruckus Wireless
Network & Communication
Advanced Switching: Layer 3
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 9216 bytes
MAC Address Table Size: 32000 entries
Manageable: Yes
Max Units In A Stack: 12
Ports: 24
Product Type: Switch
Subcategory: Network hubs and switches
Switching Type: Gigabit Ethernet
Expansion Slots
Expansion Slots: 3 (total) / 0 (free) x expansion slot
QSFP Slots: 40 Gigabit QSFP+ (uplink)
Connectivity
Port Quantity: 24
Port Type: 10/100/1000
Ports Type (2nd): 10 Gigabit SFP+ (uplink)
Power
Frequency: 50/60 hertz
Power Consumption Operational: 69 watt
Power Provided: 250 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply: Optional
Redundant Power Supply Supported: 1+1 (with optional power supply)
