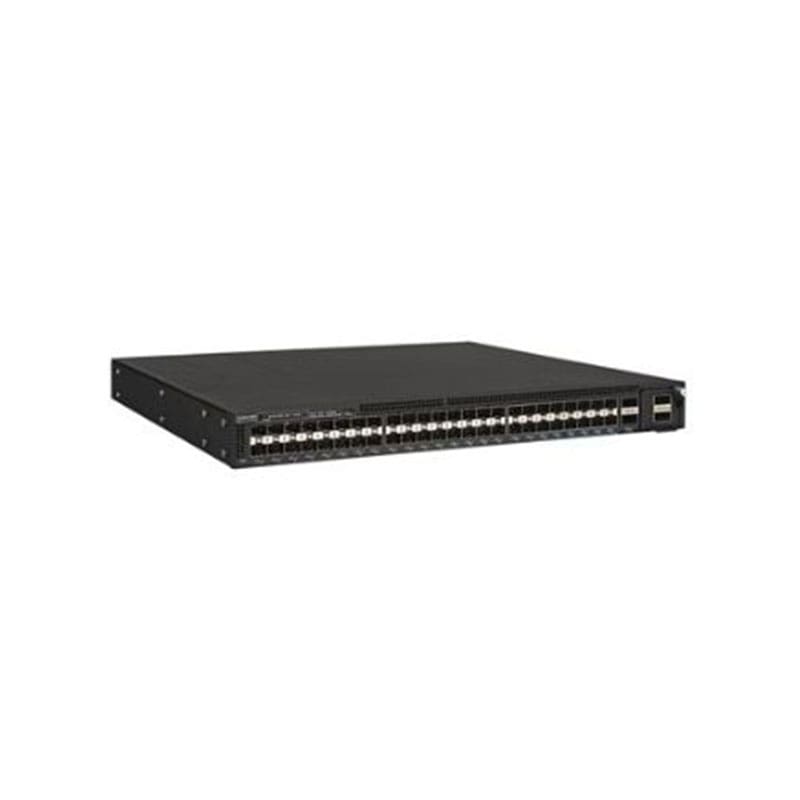

ICX7550-48F-E2 Ruckus ICX7550 48 Port Fiber Channel Switch
ICX7550-48F-E2 Overview
The CommScope Ruckus ICX 7550 Switch delivers the premium performance and scalability required for Wi-Fi 6 deployments and beyond with up to 48 ports of multigigabit connectivity and full 90 watts of 802.3bt PoE power per port with perpetual and fast-boot PoE support. It enables enterprises to dramatically increase their network capacity while using their existing optical wire infrastructure.
$10,555
ICX7550-48F-E2 Technical Specifications
Ruckus ICX7550 48 Port Fiber Channel Switch
Brand: Ruckus
Product Line: Ruckus ICX
Model: 7550-48F-E2
Manufacturer: Ruckus Wireless
Memory
Flash Memory Installed: 4 GB
RAM Installed: 4 GB
Network & Communication
Advanced Switching: Layer 3
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 12288 bytes
Manageable: Yes
Max Units In A Stack: 12
Ports: 48
Product Type: Switch
Subcategory: Network hubs and switches
Switching Type: 10 Gigabit Ethernet
QSFP Slots: 40/100 Gigabit QSFP+
Connectivity
Port Quantity: 36
Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+
Power
Frequency: 50/60 hertz
Nominal Voltage: AC 120/230 V
Power Consumption Operational: 166.8 watt
Power Provided: 400 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Redundant Power Supply Supported: 1+1
