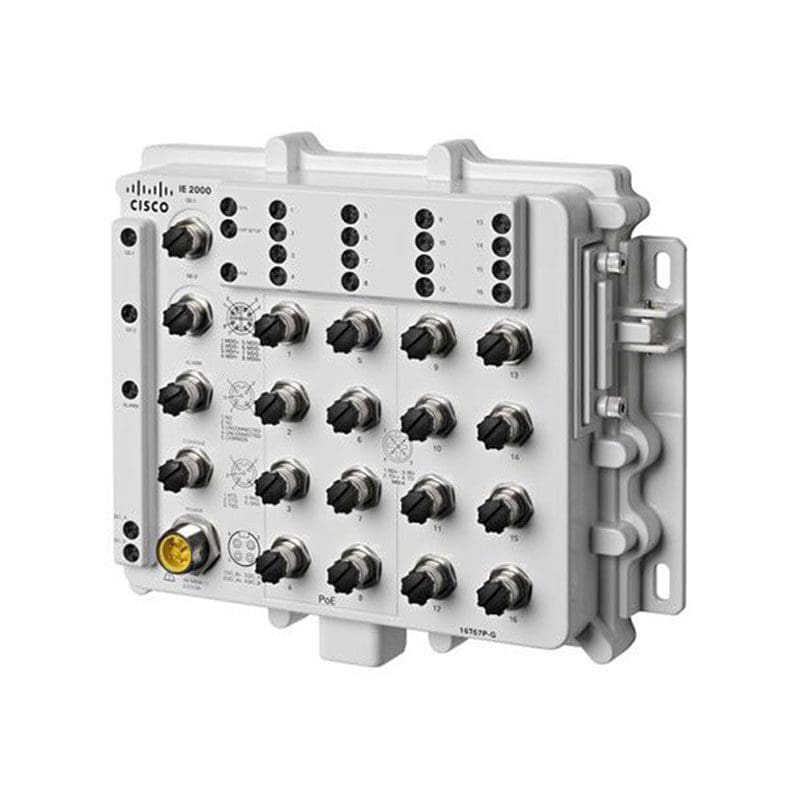

Refurbished IE-2000-16T67P-G-E Technical Specification
Cisco Industrial Ethernet 2000 IP67 Series
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Industrial Ethernet
Model :2000 IP67 Series
Packaged Quantity :1
RAM
Installed Size :256 megabyte
Flash Memory
Installed Size :64 megabyte, 64 megabyte
Performance
Performance :Forwarding performance (64-byte packet size): 6.5 Mpps
Capacity
Capacity :IGMP groups: 255, VLANs supported: 1005
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Fast Ethernet
Form Factor :Wall-mountable
Ports Qty :16
Routing Protocol :BGP, OSPF, RIP, Static IPv4 routing, Static IPv6 routing
MAC Address Table Size :8K entries
Manageable :Yes
Remote Management Protocol :RMON, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet
Power Over Ethernet (PoE) :PoE+
Features :ARP support, BOOTP support, Broadcast Storm Control, Cisco Fast EtherChannel, Class of Service (CoS), DHCP relay, DHCP server, DHCP snooping, DiffServ support, Dynamic ARP Inspection (DAI), IGMP filtering, IGMP snooping, IPv6 support, LLDP support, MAC address filtering, MAC Address Notification, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, NAT support, Port Security, Precision Time Protocol (PTP), PROFINET v2, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Spanning Tree Protocol (STP) support, Syslog support, Trivial File Transfer Protocol (TFTP) support, Unicast Storm Control, Uni-Directional Link Detection (UDLD), Virtual Route Forwarding-Lite (VRF-Lite), VLAN support
Compliant Standards :IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Ports
Qty :16
Type :10/100 (PoE+)
Ports (2nd)
Qty :2
Type :10/100/1000
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SD Memory Card
Interface Provided
Interfaces :1 x console M12, 16 x 100Base-TX M12 PoE+, 2 x 1000Base-T M12 uplink
Software
Type :Cisco IOS LAN Enhanced
Power Device
Power Consumption Operational :137 watt
Miscellaneous
Color Category :White
Authentication Method :RADIUS, Secure Shell (SSH), TACACS+
