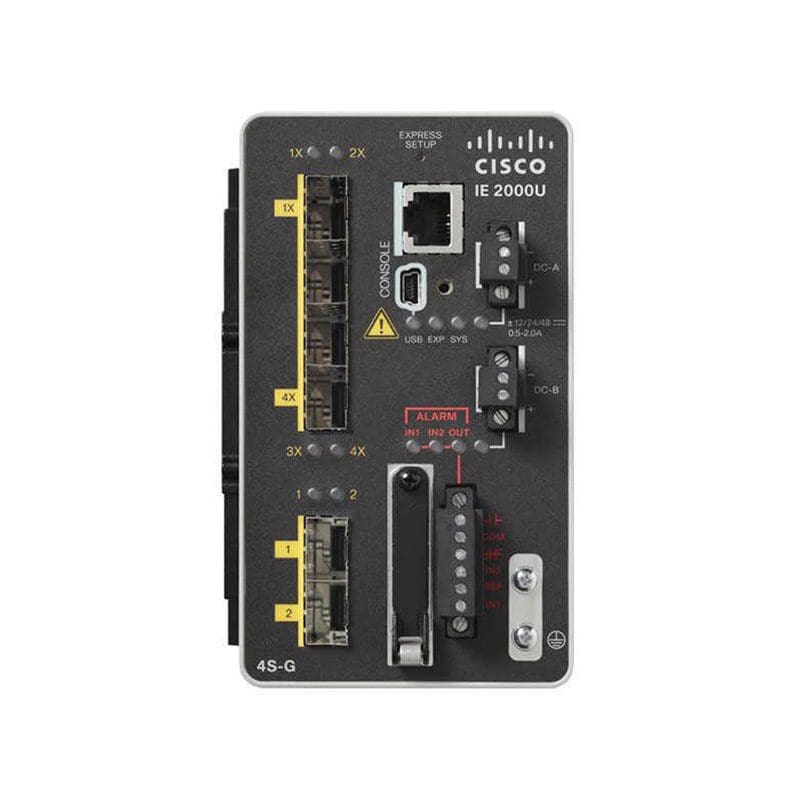

Refurbished IE-2000U-4S-G Cisco Industrial Ethernet 2000U Series

Refurbished IE-2000U-4S-G Technical Specification

Cisco Industrial Ethernet 2000U Series

Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Industrial Ethernet
Model :2000U Series
Packaged Quantity :1
RAM
Installed Size :256 megabyte
Flash Memory
Installed Size :128 megabyte, 128 megabyte
Performance
Performance :Forwarding performance (64-byte packet size): 6.5 Mpps
Capacity
Capacity :IGMP groups: 1000, Virtual interfaces (VLANs): 1000
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Form Factor :DIN rail mountable
Ports Qty :6
Routing Protocol :BGP-4, EIGRP, HSRP, IGMP, IS-IS, MLD, MLDv2, OSPF, PIM-DM, PIM-SM, RIP-1, RIP-2
MAC Address Table Size :8K entries
Manageable :Yes
Remote Management Protocol :CLI, HTTP, RMON, RMON 2, SCP, SNMP 1, SNMP 2, SNMP 3, SSH, TFTP
Features :802.1x authentication, Access Control List (ACL) support, ARP support, Bidirectional Forwarding Detection (BFD), Class of Service (CoS), DHCP snooping, Digital Optical Monitoring (DOM) support, Dynamic ARP Inspection (DAI), FTP client, Hot Standby Router Protocol (HSRP) support, Management Information Base (MIB), MLD snooping, Parallel Redundancy Protocol (PRP), PIM snooping, Port Aggregation Protocol (PAgP) support, Port Security, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Resilient Ethernet Protocol (REP), Rugged, Spanning Tree Protocol (STP) support, Storm Control, Strict Priority Queuing (SPQ), Syslog support, Time Domain Reflectometry (TDR), Trivial File Transfer Protocol (TFTP) support, Uni-Directional Link Detection (UDLD), Virtual Route Forwarding-Lite (VRF-Lite), VLAN support
Compliant Standards :IEEE 1588v2, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z
Ports
Qty :4
Type :100 Mbit SFP
Ports (2nd)
Qty :2
Type :1000Base-X SFP (uplink)
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SD Memory Card
Interface Provided
Interfaces :1 x console RJ-45, 1 x mini-USB Type B, 2 x 1000Base-X SFP uplink, 4 x 100Base-FX SFP downlink
Software
Type :Cisco IOS LAN Base
Power Device
Power Consumption Operational :15 watt
Miscellaneous
Color Category :Black
Encryption Algorithm :SSL
Authentication Method :RADIUS, Secure Shell (SSH), TACACS+
Compliant Standards :ANSI/ISA.12.12.01 Class I Division 2 Groups ABCD, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, CSA 22.2 No. 142, EN 300 386, EN 55022 Class A, EN 60079-15:2010, EN55024, FCC Part 15 A, ICES-003 Class A, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61850-3, IEC/UL/CSA/EN 60950-1, IEEE 1613, KN22 Class A, KN24, UL 508, VCCI Class A
Dimensions & Weight
Width :3.1 inch
Depth :4.5 inch
Height :5.1 inch
Weight :2.69 lbs
