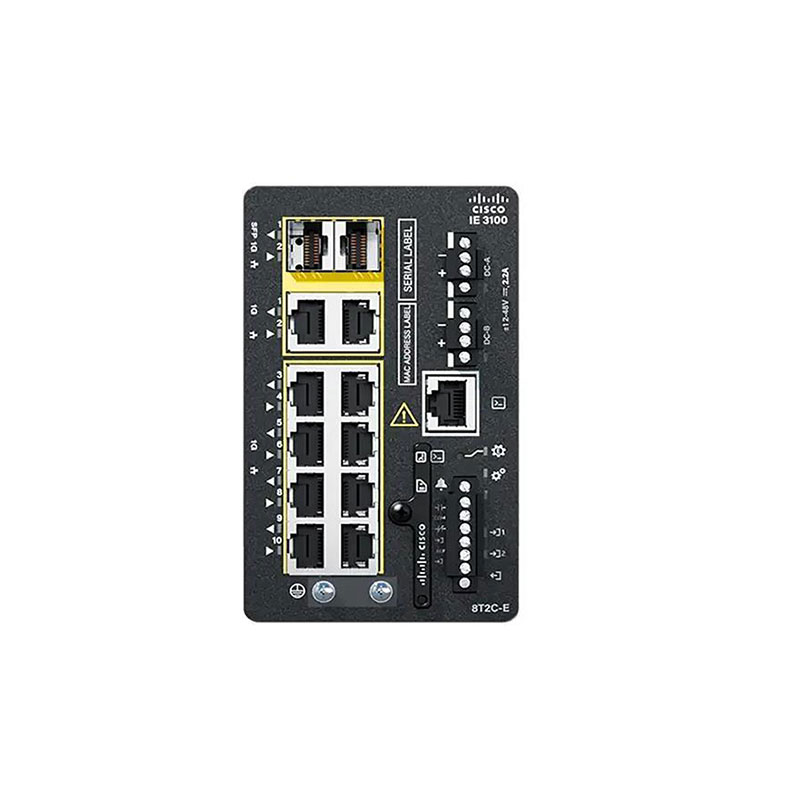

IE-3100-8T2C-E Cisco – 8-Port RJ-45 2-Port SFP Network Switch
IE-3100-8T2C-E Overview
The Cisco IE-3100-8T2C-E is an industrial-grade managed Ethernet switch designed for rugged and harsh environments such as manufacturing plants, transportation systems, and outdoor deployments. It features 8x 10/100/1000Base-T RJ-45 ports for standard Ethernet connectivity and 2x SFP ports for fiber uplinks, providing flexibility in network design and extended reach.This switch supports Layer 2 and basic Layer 3 features, including VLANs, QoS, link aggregation, and industrial protocols, enabling reliable traffic management and secure communications for mission-critical applications. It is engineered with enhanced environmental tolerances, including extended temperature range, vibration and shock resistance, and surge protection, making it suitable for industrial and outdoor installations.
IE-3100-8T2C-E Technical Specifications
Cisco – 8-Port RJ-45 2-Port SFP Network Switch
Manufacturer Part Number: IE-3100-8T2C-E
Brand Name: Cisco
Product Line: Industrial Ethernet 3100 Series
Product Type: Managed Industrial Ethernet Switch
Total Ports: 10
Gigabit Ethernet Ports: 8 x 10/100/1000 RJ-45
Uplink Ports: 2 x 1G SFP
Switching Capacity: 20 Gbps
Forwarding Rate: 14.88 Mpps
Layer Support: Layer 2
MAC Address Table: 16,000 entries
VLAN Support: Up to 4,094 VLANs
Spanning Tree Protocols: STP, RSTP, MSTP
Routing: Not Supported
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service (QoS): 4 Queues, DSCP, IEEE 802.1p
Security: 802.1X, ACLs, Port Security, DHCP Snooping
Management: CLI, Web UI, SNMP, RMON
Port Mirroring: Supported
Stacking Capability: Not Supported
LED Indicators: Power, System, Link/Activity, Speed
PoE Support: Not Available
