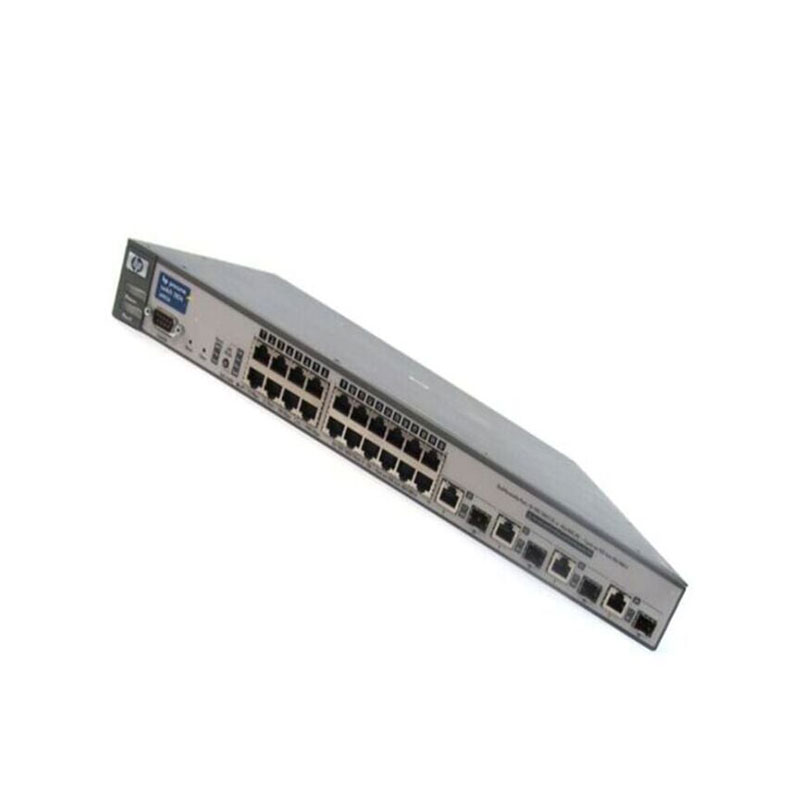

J4903A HPE ProCurve 2824 20 x 10/100/1000Base-T Ethernet 24 Ports Switch
J4903A Overview
The HPE ProCurve 2824 (J4903A) Switch is a high-performance, fully managed Gigabit Ethernet switch designed to provide reliable, flexible, and cost-effective network connectivity for enterprise and business environments. It offers 24 Gigabit Ethernet ports, of which 20 are 10/100/1000Base-T RJ-45 ports for copper connectivity and 4 are dual-personality ports that can be used as either 10/100/1000Base-T RJ-45 or mini-GBIC (SFP) slots for fiber uplinks, giving network administrators flexibility in deployment.This switch operates at wire-speed Layer 2 switching, supporting VLANs, link aggregation, spanning tree protocols, and comprehensive network management through CLI, web interface, and SNMP. It is designed to deliver non-blocking performance with low latency, ensuring smooth data transfer for bandwidth-intensive applications.
J4903A Technical Specifications
HPE ProCurve 2824 20 x 10/100/1000Base-T Ethernet 24 Ports Switch
Manufacturer Part Number:J4903A
Brand Name:HPE
Product Line:ProCurve 2800 Series
Product Type:Ethernet Switch
Total Number of Ports:24
Port Type:RJ-45
Port Speed:10/100/1000Base-T
Fixed Ports:20 x 10/100/1000Base-T RJ-45
Additional Ports:4 x Dual-Personality (RJ-45 or SFP)
Switching Capacity:48 Gbps
Throughput:35.7 Mpps
Layer Support:Layer 2 Switching
Form Factor:Rack-Mountable
Rack Unit:1U
Management:Web, CLI, SNMP, ProCurve Manager
VLAN Support:Yes (IEEE 802.1Q)
Jumbo Frames:Supported (9K)
MAC Address Table Size:8,000 entries
Stacking:Standalone (no stacking support)
Security:802.1X, Port Security, Access Control Lists (ACLs)
Redundancy:Spanning Tree Protocol (STP, RSTP)
QoS:IEEE 802.1p prioritization
Power Supply:Internal AC power supply
Cooling:Fanless (silent operation)
Energy Efficient:Yes
Operating Temperature:0°C – 45°C
Operating Humidity:15% – 95% non-condensing
Environmentally Friendly:Yes
