J9019A Technical Specifications

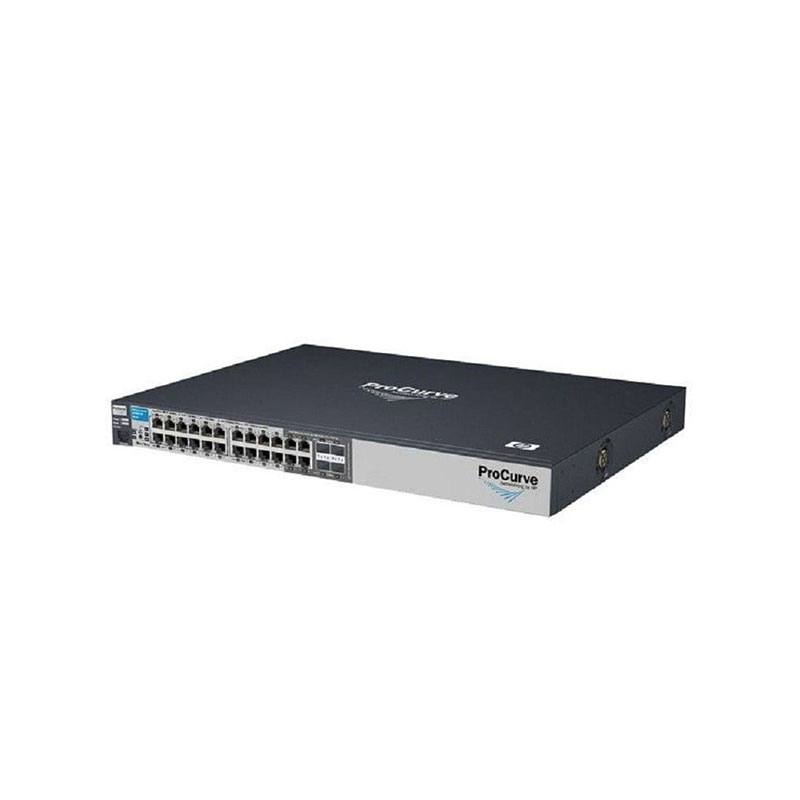

HPE ProCurve Switch 2510-24 24-Port 10/100 2-Port GigT/SFP
Manufacturer Part Number:J9019A
Brand Name:HPE
Product Line:ProCurve
Product Series:2510
Product Model:2510-24
Product Type:Managed Ethernet Switch
Total Network Ports:24 x 10/100Base-T RJ-45
Uplink Ports:2 x 10/100/1000Base-T RJ-45, 2 x Dual-Personality SFP slots
Layer Support:Layer 2 switching
Switching Capacity:12.8 Gbps
Forwarding Rate:9.5 Mpps
MAC Address Table:8,000 entries
VLAN Support:Up to 64 VLANs, IEEE 802.1Q tagging
Spanning Tree Protocol:IEEE 802.1D, 802.1w, 802.1s
Quality of Service:802.1p traffic prioritization
IGMP:IGMP Snooping v1/v2
Flow Control:IEEE 802.3x support
Management:CLI, Web GUI, SNMP v1/v2c
Security Features:Port Security, RADIUS, TACACS+
Jumbo Frames:Supported (up to 9K)
Packet Buffer:4 MB
Redundancy:Optional redundant external power supply
LED Indicators:Status, Activity, Link, Speed
Form Factor:1U rack-mountable
Mounting Options:Rack-mount kit, desktop placement
Power Supply:Internal fixed PSU
