J9020-61001 Technical Specifications

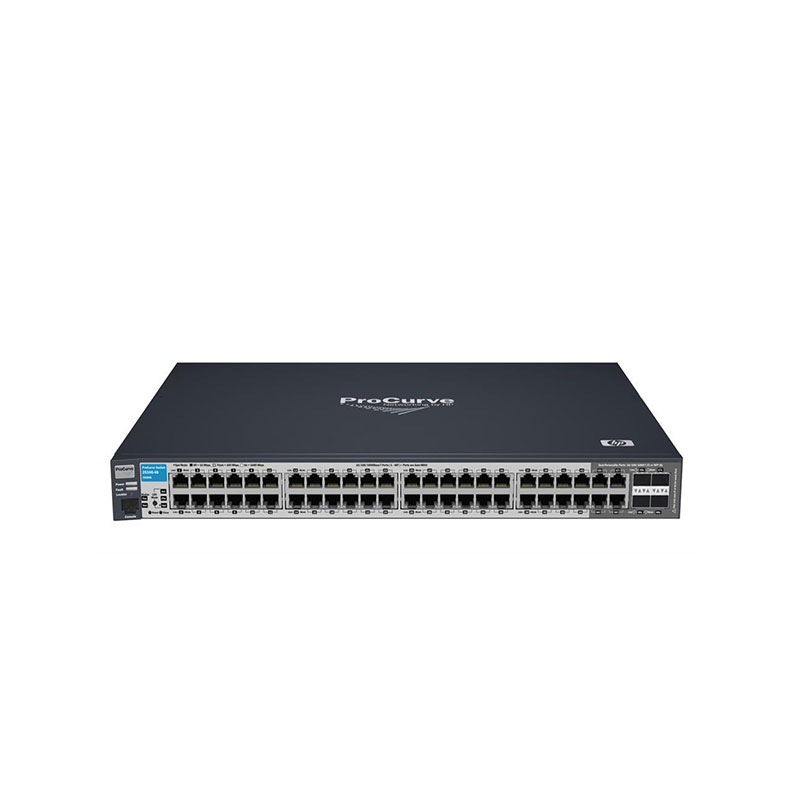

HP ProCurve 2510-48 Switch 48-Ports Fast Ethernet 100Base-T 2x1000Base-T 2xSFP Slots 1U Manage Ethernet Switch
Manufacturer Part Number:J9020-61001
Brand Name:HP
Product Line:ProCurve
Product Series:2510
Product Model:2510-48
Product Type:Managed Ethernet Switch
Total Network Ports:48 x 10/100Base-T RJ-45
Uplink Ports:2 x 10/100/1000Base-T RJ-45, 2 x SFP slots (dual personality)
Layer Support:Layer 2 switching
Switching Capacity:17.6 Gbps
Forwarding Rate:13.1 Mpps
MAC Address Table:8,000 entries
VLAN Support:Up to 64 VLANs, IEEE 802.1Q
Spanning Tree Protocol:IEEE 802.1D, 802.1w, 802.1s
Quality of Service:IEEE 802.1p traffic prioritization
IGMP:IGMP Snooping v1/v2
Flow Control:IEEE 802.3x supported
Management Options:Web GUI, CLI, SNMP v1/v2c
Security Features:Port Security, RADIUS, TACACS+
Jumbo Frames:Supported (up to 9K)
Packet Buffer:4 MB
