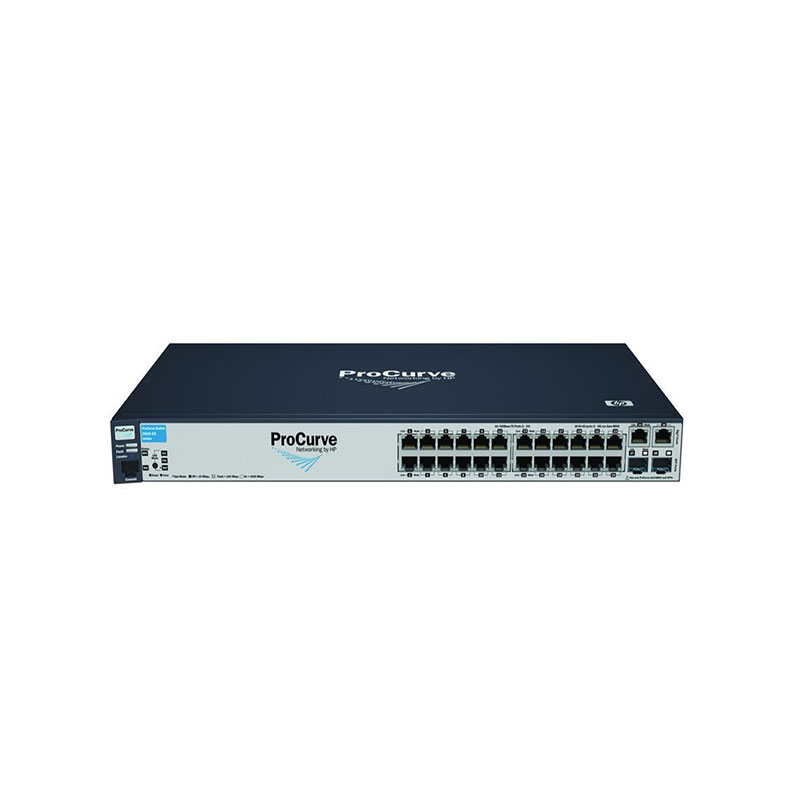

J9085-61001 HP ProCurve E2610-24 24-Ports Multi Layer Stackable Managed Fast Ethernet Switch
J9085-61001 Overview
The HP ProCurve J9085-61001 (E2610-24) is a 24-port multilayer stackable managed Fast Ethernet switch built to deliver advanced connectivity, security, and scalability for enterprise networks. It is equipped with 24 x 10/100Base-TX RJ-45 ports, complemented by 2 dual-personality Gigabit ports (10/100/1000Base-T or SFP), giving flexibility for uplinks or fiber connectivity. This makes it suitable for aggregation or access-layer deployments in business and campus environments.As part of the ProCurve E2610 series, it supports Layer 2 switching as well as basic Layer 3 static routing, allowing traffic segmentation and inter-VLAN routing without the need for a dedicated router.
J9085-61001 Technical Specifications
HP ProCurve E2610-24 24-Ports Multi Layer Stackable Managed Fast Ethernet Switch
Manufacturer Part Number: J9085-61001
Brand Name: HP
Product Line: ProCurve E2610
Product Type: Managed Fast Ethernet Switch
Total Ports: 24
Fast Ethernet Ports: 24 x 10/100Base-TX RJ-45
Expansion Slots: 2 x Dual-Personality (RJ-45 or SFP)
Switching Capacity: 12.8 Gbps
Forwarding Rate: 9.5 Mpps
Layer Support: Layer 2 / Layer 3 Lite
MAC Address Table: 8,000 entries
VLAN Support: 256 VLANs (IEEE 802.1Q)
Spanning Tree Protocol: IEEE 802.1D, 802.1w, 802.1s
Static Routing: Supported (IPv4)
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: IEEE 802.1p, 8 priority queues
Security: IEEE 802.1X, Access Control Lists
Management: Web GUI, CLI, SNMP v1/v2c/v3
RMON: Supported (4 groups)
Mirroring: Port and VLAN based
LED Indicators: Power, Fault, Link, Activity
