J9137-69001 Technical Specifications

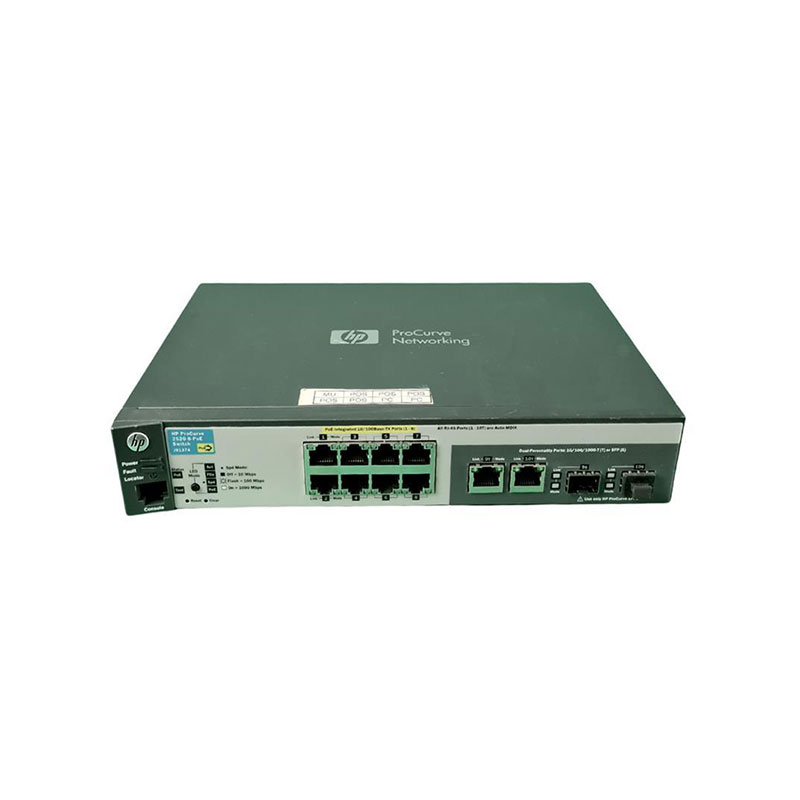

HP ProCurve 2520-8-PoE Ethernet Switch 2 x SFP Shared 8 x 10/100Base-TX LAN 2 x 10/100/1000Base-T
Manufacturer: HP
Manufacturer Part Number: J9137-69001
Ports: 8 x 10/100Base-TX RJ-45 (PoE)
Additional Ports: 2 x 10/100/1000Base-T uplink + 2 x SFP (shared)
Speed: 10/100 Mbps on access, 10/100/1000 Mbps on uplinks
Layer: Layer 2 switching
PoE: IEEE 802.3af PoE support
Management: Web interface, CLI, SNMP
VLAN: IEEE 802.1Q VLAN tagging
QoS: 802.1p traffic prioritization
Security: Port security, 802.1X authentication
Switching Capacity: 12.8 Gbps
Forwarding Rate: Up to 9.5 Mpps
Jumbo Frames: Supported
Hot Swap: Not applicable (fixed switch)
Form Factor: Compact, fanless, rack-mountable / desktop
LEDs: Power, port status, PoE, activity
Redundant Power: Not supported (internal PSU only)
Cooling: Fanless silent operation
STP: STP, RSTP, MSTP supported
Multicast: IGMP snooping supported
