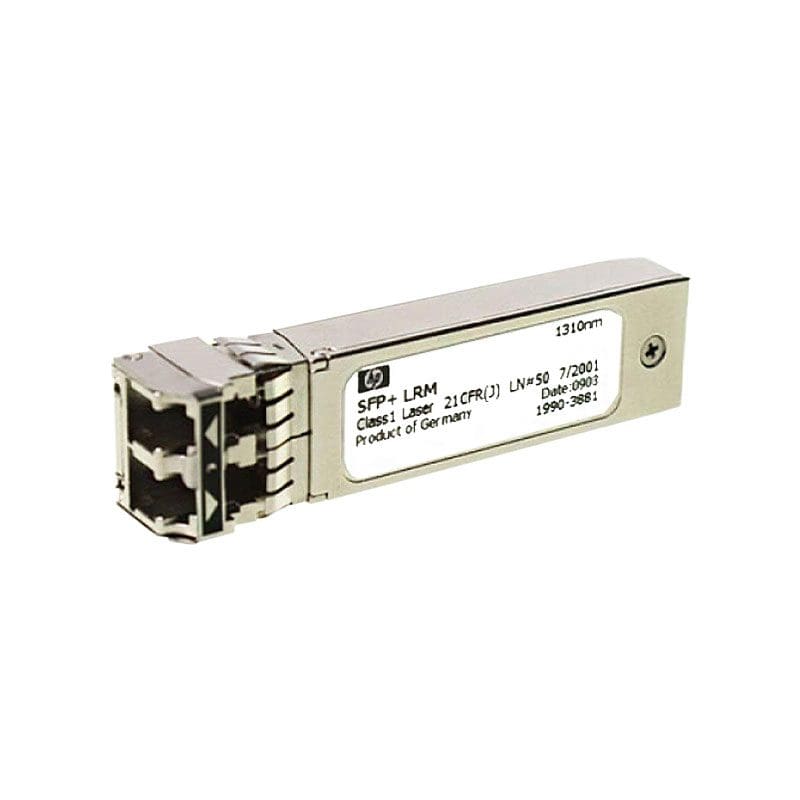

J9152-69101 HPE X132 10Gbps SFP+ LC LRM Full Duplex Transceiver Module
J9152-69101 Overview
HPE X132 10Gbps SFP+ LC LRM Full Duplex Transceiver Module.In the world of networking, transceiver modules are an essential component for the transmission of data between different network devices. These modules allow for the conversion of electrical signals to optical signals, which can then be transmitted over a fiber optic cable. One such module is this HPE SFP Transceiver Module 10GBase LRM
J9152-69101 Technical Specification
HPE X132 10Gbps SFP+ LC LRM Full Duplex Transceiver Module
Manufacturer: HPE
Brand: HPE
Device Type : Sfp+ Transceiver Module
Form Factor : Plug-in Module
Interface (bus) Type : Sfp
Networking
Connectivity Technology : Wired
Cabling Type : Ethernet 10gbase-lrm
Data Link Protocol : 10 Gigabit Ethernet
Max Transfer Distance : 720 Ft
Optical Wave Length : 1310 Nm
Compliant Standards : Ieee 802.3aq
Expansion / Connectivity
Interfaces : 1 X Network – Ethernet 10gbase-lrm – Lc Multi-mode
Compatible Slots : 1 X Sfp
Product Dimensions
Width: 0.60 inch
Depth: 2.20 inch
Height: 0.50 inch
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 158 °F
