J9420A Technical Specifications

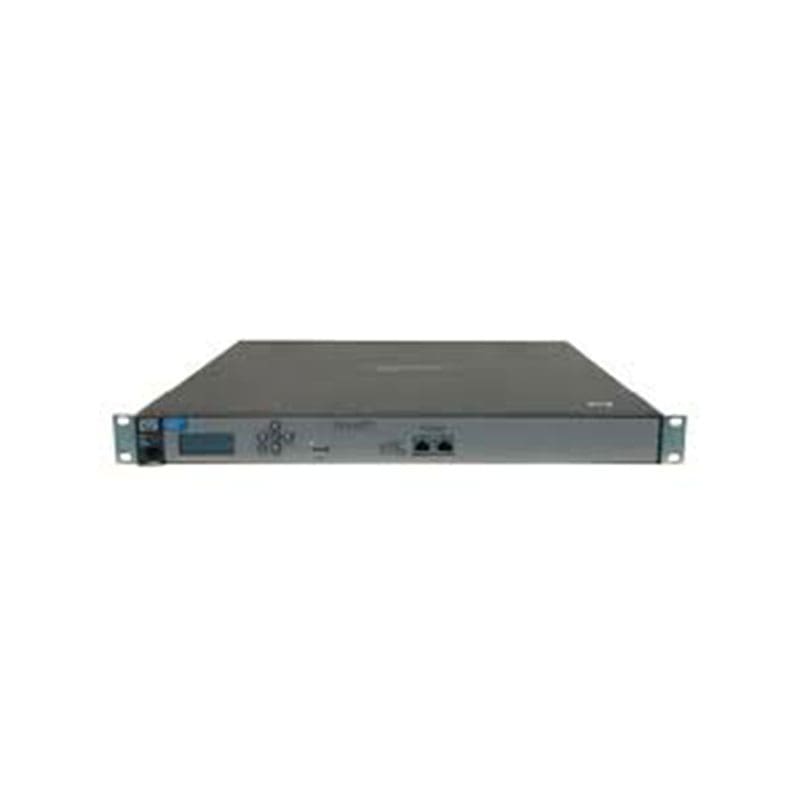

HPE ProCurve MSM760 Mobility Controller – 2
Manufacturer: HP
Brand: HPE
Type: Networking
Management Module-Type: 2 Port
Technical Information
Height (Rack Units) : 1u
Processors Installed : 1 X Intel Core 2 Duo 2.2 Ghz
Ram Installed ( Max ) : 4 Gb Ddr2 Sdram
Hard Drive : 250 Gb X 1 – Serial Ata-300
Networking
Form Factor : Rack-Mountable
Ports Qty : 2
Connectivity Technology : Wired
Data Transfer Rate : 1 Gbps
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Snmp 2c, Http
Capacity : Manageable Access Points : 200 Concurrent Users : 2000
Dimensions & Weight
Depth : 15.5 inch
Height : 1.8 inch
Weight : 13.45 lbs
Expansion / Connectivity
Interfaces : 2 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45
Power
Voltage Required : Ac 120/230 V ( 50/60 Hz )
