J9772-61001 Technical Specifications

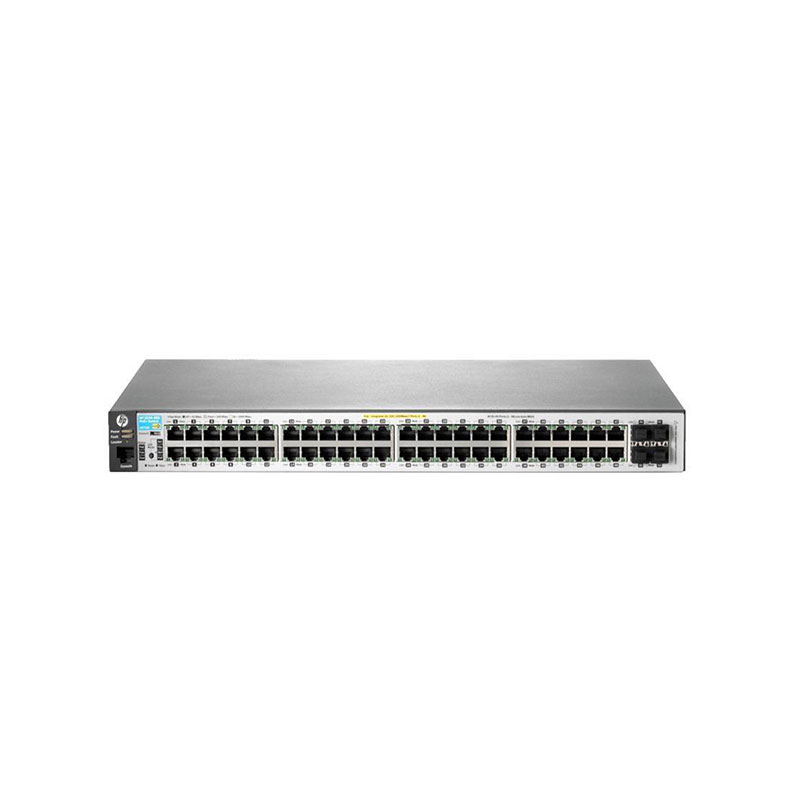

HP Procurve 2530-48G 48-Ports RJ-45 10/100/1000-T PoE+ Manageable Layer 2 Rack-mountable 1U with Gigabit Ethernet SFP Switch
Manufacturer Part Number: J9772-61001
Brand Name: HP
Product Type: Layer 2 Managed Gigabit Ethernet Switch
Total Ports: 48
Ethernet Ports: 48 x 10/100/1000Base-T RJ-45
Uplink Ports: 4 x Gigabit SFP
PoE Support: IEEE 802.3af / 802.3at PoE+
PoE Power Budget: ~382W (depending on PSU)
Layer Support: Layer 2 Switching
Switching Capacity: 104 Gbps
Forwarding Rate: 77.4 Mpps
MAC Address Table: 16,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Queues, IEEE 802.1p, DSCP
Security Features: 802.1X Authentication, ACLs, Port Security
