J9773-61101 Technical Specifications

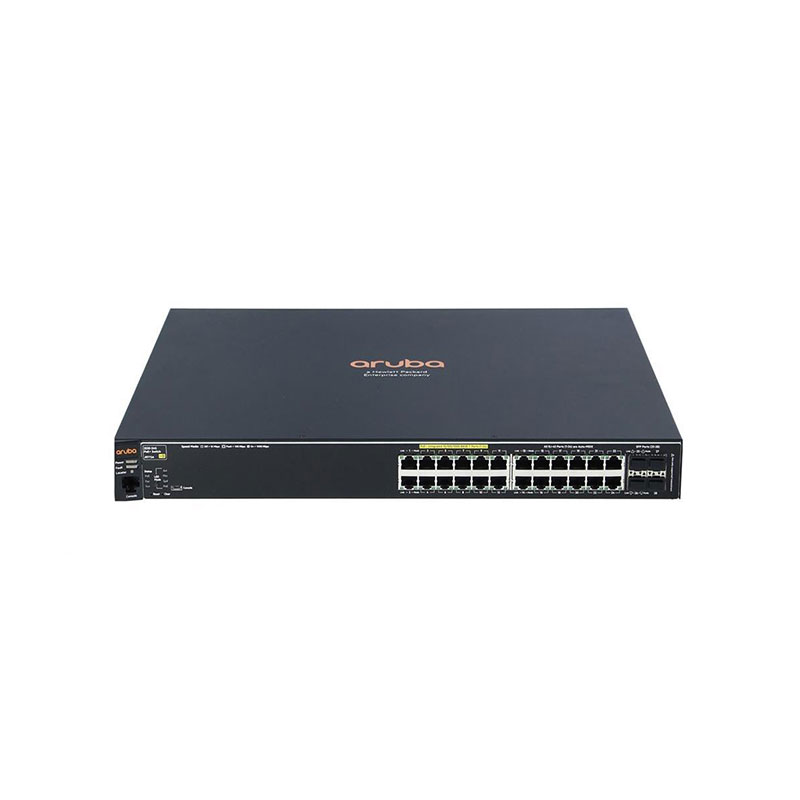

HP 2530-24G-PoE+ Managed Switch 24 Ports
Manufacturer Part Number: J9773-61101
Brand Name: HP
Product Type: Layer 2 Managed Gigabit Ethernet Switch
Total Ports: 24
Ethernet Ports: 24 x 10/100/1000Base-T RJ-45
Uplink Ports: 4 x Gigabit SFP (mini-GBIC)
PoE Support: IEEE 802.3af / 802.3at (PoE+)
PoE Power Budget: ~195W
Layer Support: Layer 2 Switching
Switching Capacity: 56 Gbps
Forwarding Rate: 41.7 Mpps
MAC Address Table: 16,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Priority Queues, IEEE 802.1p, DSCP
Security Features: IEEE 802.1X, ACLs, Port Security
Management Options: Web GUI, CLI, SNMP v1/v2c/v3
Monitoring: RMON (4 Groups), Port/VLAN Mirroring
