J9777-61001 Technical Specifications

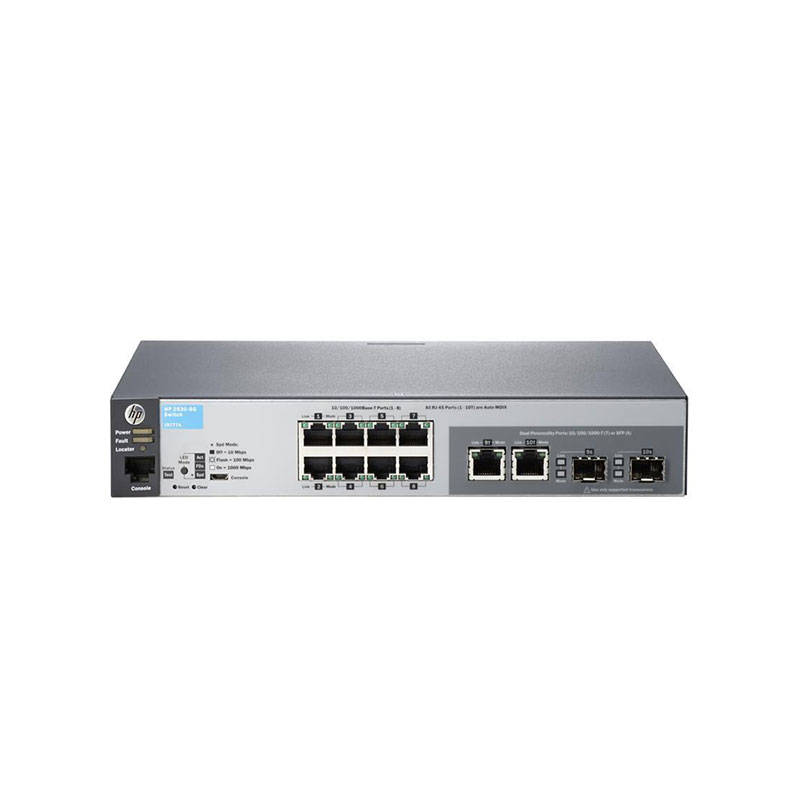

HP ProCurve 2530 8-Ports 10/100/1000 RJ-45 Manageable Layer2 Rack-mountable Desktop Wall-mountable Switch
Manufacturer: HP
Manufacturer Part Number: J9777-61001
Ports: 8 x 10/100/1000Base-T RJ-45
Uplinks: 2 x Gigabit SFP or RJ-45 dual-personality ports
Speed: 10/100/1000 Mbps per access port
Layer: Layer 2 switching
PoE: Not supported
Management: Web interface, CLI, SNMP, ProCurve Manager
VLAN: IEEE 802.1Q VLAN tagging
QoS: 802.1p traffic prioritization
Security: ACLs, 802.1X authentication, port security
Switching Capacity: 20 Gbps
Forwarding Rate: Up to 14.88 Mpps
Jumbo Frames: Supported (up to 9K)
Hot Swap: Not applicable (fixed switch)
Form Factor: Desktop, wall-mountable, or rack-mountable
LEDs: Port link/activity, system, power
Redundant Power: Optional external RPS support
Cooling: Fanless for desktop/wall-mount or internal fan for rack deployment
STP: STP, RSTP, MSTP supported
Multicast: IGMP snooping, MLD snooping
