JB3012S00-00A2 Technical Specifications

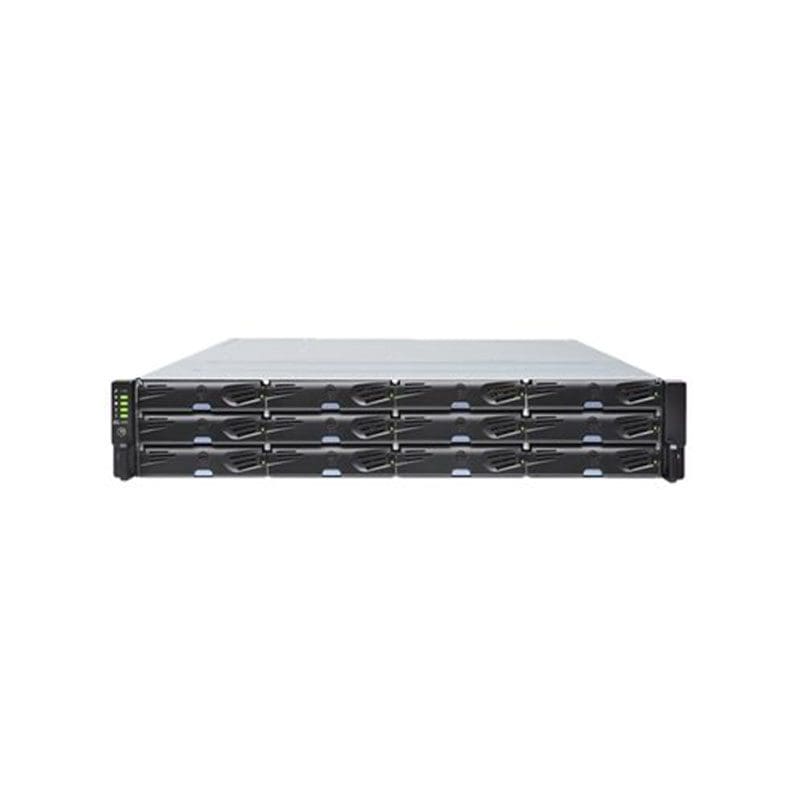

Infortrend JBOD JB 3012S Expansion Enclosure Hard Drive Array
Manufacturer
JB3012S00-00A2
Brand
Infortrend
Product Line
Infortrend JBOD
Model
JB 3012S Expansion Enclosure
Packaged Quantity
1
Chassis
Installed Devices / Modules Qty
0
Supported Devices / Modules Qty
12
Supported Interface
Serial Attached SCSI 3
Storage
Type
Hard drive array
Rack-mountable
Rack-mountable
HDD Array External Interface Class
Serial Attached SCSI
HDD Array External Interface
Serial Attached SCSI 3
Storage Controller
Type
Serial Attached SCSI 3
Data Transfer Rate
1.2 GBps, 12 GBps
Interface Type
Serial Attached SCSI 3
Installed Qty
1
RAID Level
JBOD
Storage Controller (2nd)
Type
None
Hard Drive
Type
No HDD
Optical Storage
Type
None
Expansion Bays
Expansion Bays
12 (total) / 12 (free) x hot-swap – 2.5″ / 3.5″ shared
Interface Provided
Interfaces
2 x SAS 12Gb/s
Cable Details
Cables Included
1 x Serial ATA / SAS cable
Power Device
Type
Internal power supply
Hot-Plug
Hot-plug
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Installed Qty
2
Max Supported Qty
2
Power Provided
460 watt
