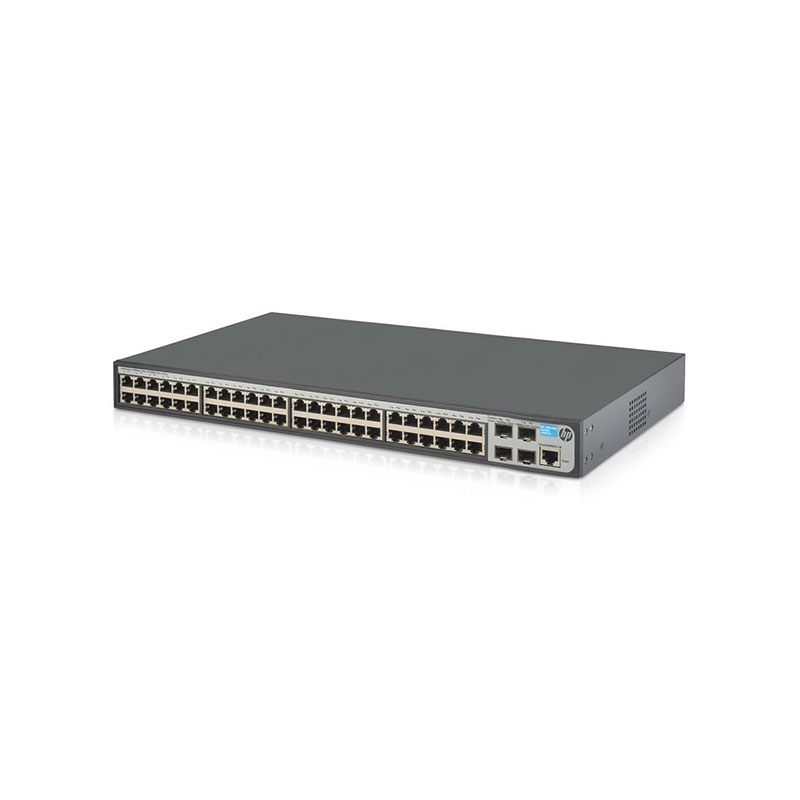

JC691-61101 HPE Switch With 1 Interface Slot Switch 48 Ports Managed Rack Mountable
JC691-61101 Overview
Security and access control are essential components of any network infrastructure. They are used to protect the network and its resources from unauthorized access and cyber threats.
Access control refers to the process of granting or denying access to network resources based on predefined rules and policies. This can include controlling access to specific network segments, devices, or applications. Access control can be implemented at multiple levels in the network, such as at the switch or router level, or at the application or user level.
JC691-61101 Technical Specifications
HPE Switch With 1 Interface Slot Switch 48 Ports Managed Rack Mountable
Manufacturer: HPE
Model Number or SKU# JC691-61101
Product Type : 48 Ports L3 Managed Switch
Technical Information
Enclosure Type : Rack-Mountable – 1u
Ports : 48 X 10/100/1000 + 2 X Shared Sfp + 2 X 10 Gigabit Ethernet / 1 Gigabit Ethernet Sfp+
Performance : Switching Capacity : 160 Gbps Throughput : 119 Mpps
Capacity : Routing Table Entries : 12000
Mac Address Table Size : 32000 Entries
Expansion / Connectivity
Interfaces : 48 X 10base-T/100base-Tx/1000base-T – Rj-45 2 X Sfp (Mini-Gbic) 2 X Sfp+ Serial : 1 X Console – Rj-45 1 X Rj-45 – Management
Expansion Slot(S) : 1 (Total) / 1 (Free) X Expansion
