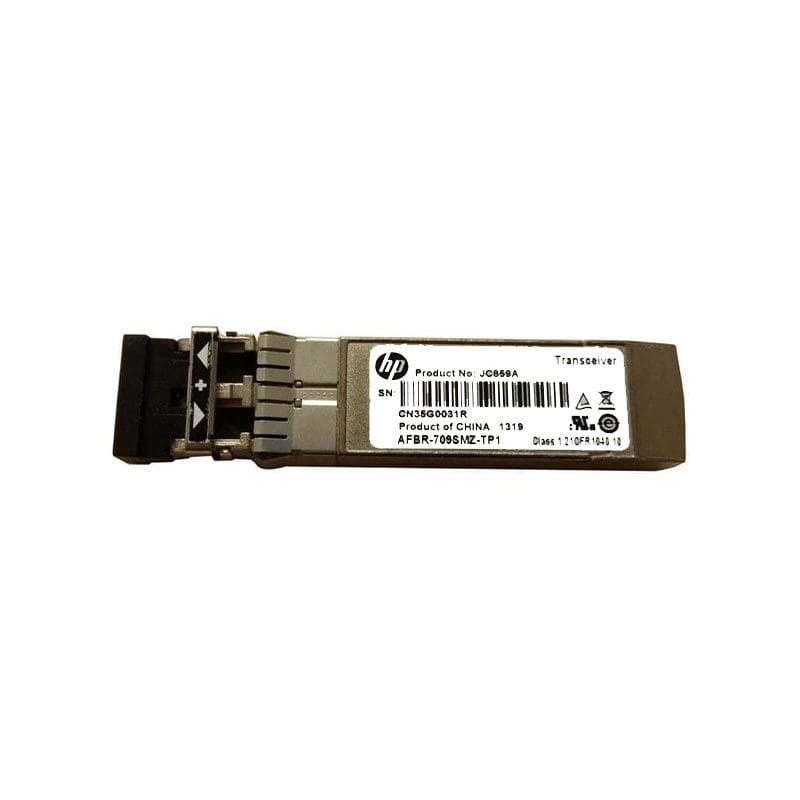

JC859A HP S136 10Gbps 10GBase-SR Multi-mode Fibera SFP+ Module

HP S136 10G LC-SR Compatible Transceiver Module

SFP-10G85-3MC-HP (JC859A S136 10G LC-SR) multi-mode transceiver is SFP+ module for duplex optical data communications such as 10GBASE-SR and 10GBASE-SW. This transceiver offers the same function with HP JC859A and it is fully compatible with HP devices. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. This module is designed for multi-mode fiber and operates at a nominal wavelength of 850 nm.The transmitter section uses a Vertical Cavity Surface Emitted Laser (VCSEL) and is a Class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated GaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
