JD119B HP X120 SFP Mini-GBIC Transceiver Module

JD119B Overview

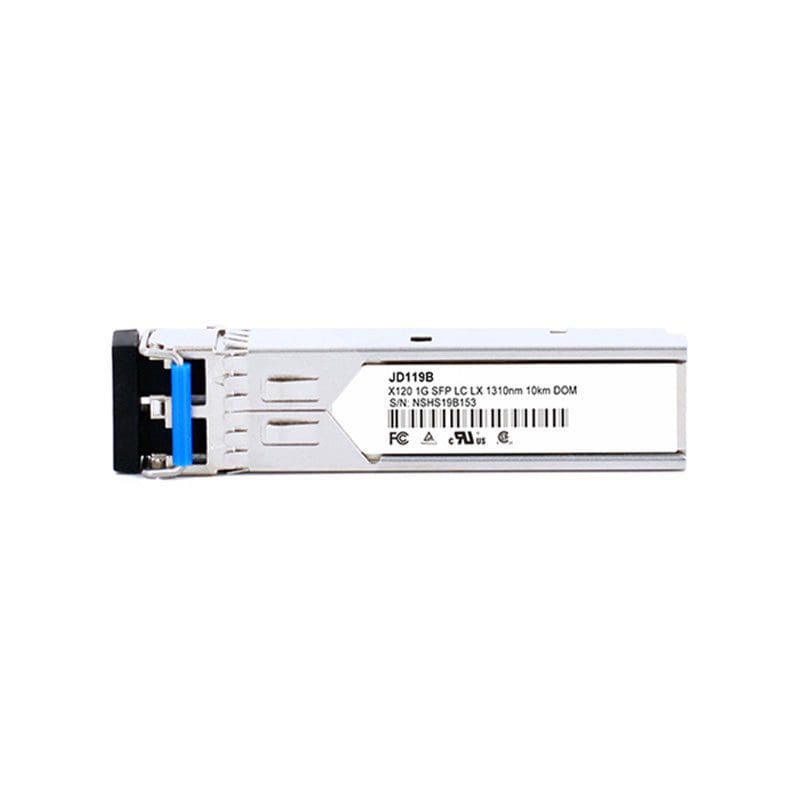

HPE is a HP X120 1G SFP LC LX Transceiver. It’s a small form-factor pluggable (SFP) Gigabig LX transceiver that provides a full duplex Gigabit solution up to 550m on MMF or 10Km on SMF.


Buy Now
GTIN: 885631249611
Availability: In Stock

JD119B Technical Specifications

HP X120 SFP Mini-GBIC Transceiver Module

Manufacturer: HP
HP Transceiver
Product Description: HP X120 – SFP (mini-GBIC) transceiver module – 1000Base-LX – LC – plug-in module
Device Type: SFP (mini-GBIC) transceiver module – LC
Enclosure Type: Plug-in module
Cabling Type: 1000Base-LX
Data Transfer Rate: 1 Gbps
Data Link Protocol: Gigabit Ethernet
Type: HP X120 1G SFP LC LX Transceiver
Ports: 1 SFP 1000BASE-LX port (IEEE 802.3z Type 1000BASE-LX)
Connector type: LC
Wavelength: 1300 nm
Cabling distance (maximum): 550m for Multimode, 10km for Singlemode
Cable type: Either single mode or multimode
Fiber type: Both
Power consumption typical: 0.8 W
Power consumption maximum: 1.0 W
Dimensions: 2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)
Weight: 0.04 lb.
