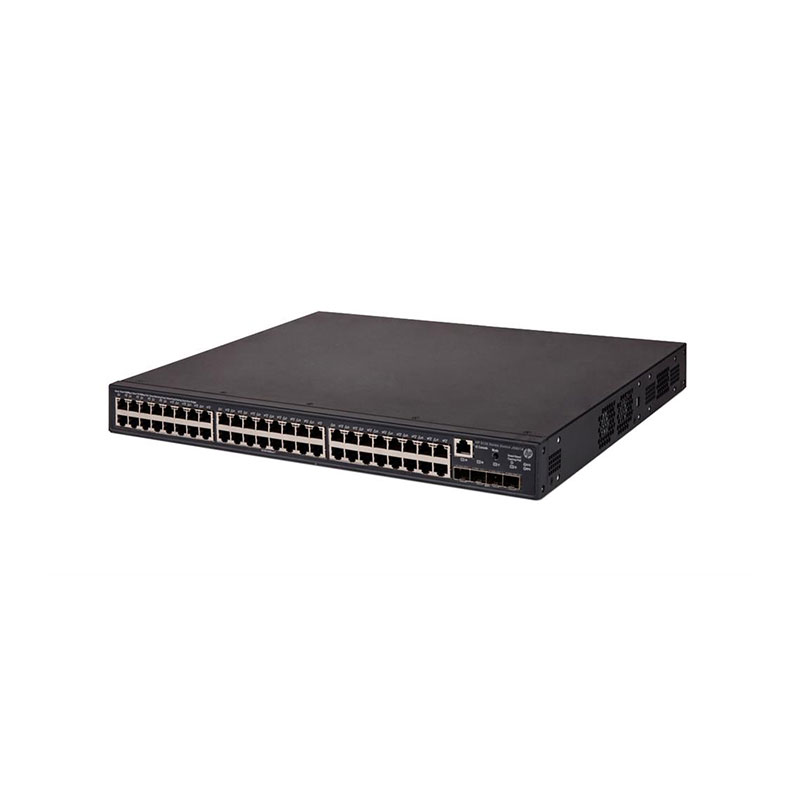

JG937A HP 5130-48G-PoE+ 48-Port + 4-Port SFP+ Layer 3 Switch
JG937A Overview
The HP JG937A 5130-48G-PoE+ is a Layer 3 managed Gigabit Ethernet switch designed for enterprise campus networks, wiring closets, and branch offices. It features 48x RJ-45 10/100/1000Base-T PoE+ ports, providing both network connectivity and power over Ethernet to devices such as IP phones, wireless access points, and security cameras.Additionally, it includes 4x SFP+ uplink ports for flexible 1/10 Gigabit fiber or copper connections to core switches or aggregation layers, ensuring high-speed, low-latency uplinks. The switch supports Layer 3 routing, VLANs, ACLs, QoS, and advanced security features, enabling efficient traffic management and secure communications across the network.
JG937A Technical Specifications
HP 5130-48G-PoE+ 48-Port + 4-Port SFP+ Layer 3 Switch
Manufacturer Part Number: JG937A
Brand Name: HP
Product Line: 5130 EI Series
Product Type: Layer 3 Managed PoE+ Gigabit Ethernet Switch
Total Ports: 52
Gigabit Ethernet Ports: 48 x 10/100/1000 RJ-45 PoE+
Uplink Ports: 4 x 10G SFP+
Switching Capacity: 176 Gbps
Forwarding Rate: 130.95 Mpps
Layer Support: Layer 2 / Layer 3
MAC Address Table: 32,000 entries
VLAN Support: Up to 4,094 VLANs
Spanning Tree Protocols: STP, RSTP, MSTP
Routing: Static IPv4 / IPv6, RIP, OSPF, BGP
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service (QoS): 8 Queues, DSCP, IEEE 802.1p
Security: 802.1X, ACLs, Port Security, DHCP Snooping, DoS Prevention
Management: Web GUI, CLI, SNMP, RMON
Port Mirroring: Supported
