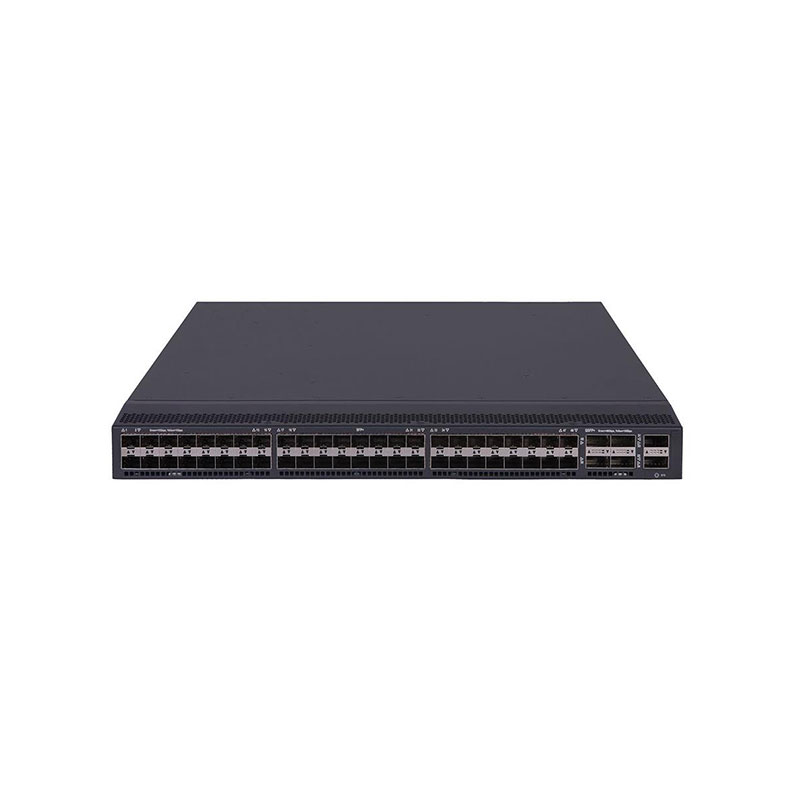

JH395A HP 48-Port SFP+ 6-Port QSFP28 L3 Switch
JH395A Overview
The HP JH395A is a high-performance Layer 3 managed switch designed for enterprise data centers and high-speed aggregation networks. It features 48 SFP+ ports for 10GbE connectivity and 6 QSFP28 ports for 40/100GbE uplinks, delivering ultra-fast, low-latency connections for servers, storage, and network uplinks.Built for scalable and resilient networks, the JH395A supports advanced Layer 3 features including static routing, RIP, OSPF, and VRRP, alongside comprehensive Layer 2 functionality such as VLANs, link aggregation (LACP), and QoS. Security features include ACLs, 802.1X authentication, and robust traffic segmentation to ensure secure and efficient network operations.
JH395A Technical Specifications
HP 48-Port SFP+ 6-Port QSFP28 L3 Switch
Manufacturer Part Number: JH395A
Brand Name: HP
Product Type: Managed Layer 3 Switch
Total Ports: 54
10/25/40/100-Gigabit Ethernet Ports: 48 x SFP+ + 6 x QSFP28
Switching Capacity: 6.4 Tbps
Forwarding Rate: 2,380 Mpps
Layer Support: Layer 2 / Layer 3 / Layer 4
MAC Address Table: 512,000 entries
VLAN Support: 4,094 VLANs (IEEE 802.1Q)
Routing: Static, RIP, OSPF, BGP, IPv4/IPv6, VRF
Spanning Tree Protocols: STP, RSTP, MSTP
Link Aggregation: IEEE 802.3ad LACP
Quality of Service (QoS): 8 queues, DSCP, IEEE 802.1p
Security: ACLs, 802.1X, DHCP Snooping, uRPF, DoS Protection
Management: CLI, Web UI, SNMP, RMON, sFlow
Port Mirroring: Supported
Stacking Capability: IRF (Intelligent Resilient Fabric) supported
PoE Support: Not available
Form Factor: 1U Rack-mountable
