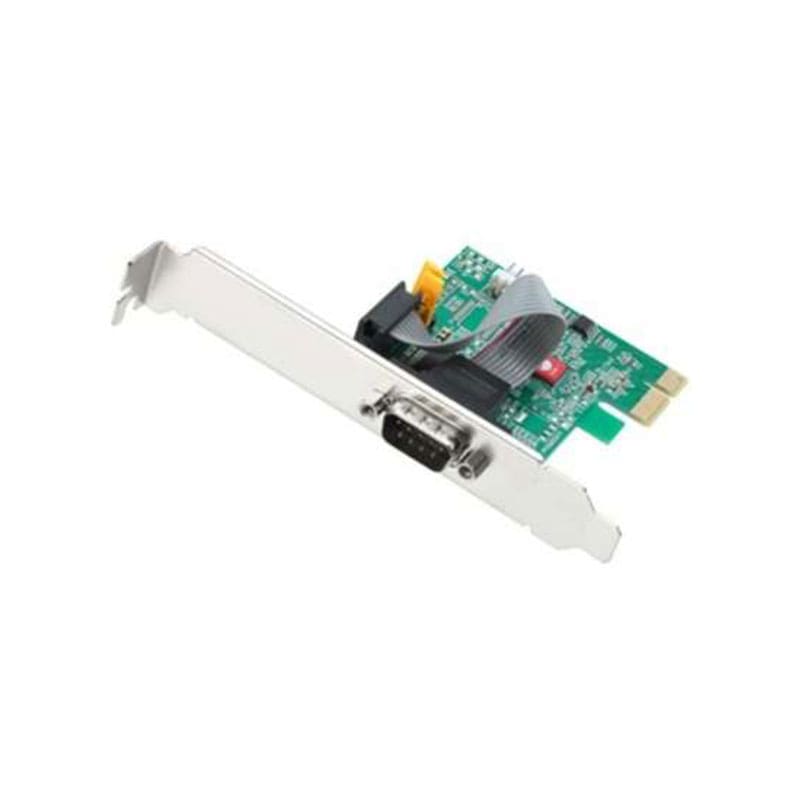

JJ-E20611-S1 SIIG DP Cyber RS-232 1S PCIe Card Serial Adapter PCIe
JJ-E20611-S1 Overview
Add one 16650 RS232 port to your PCI Express system Features
Adds one 9-pin RS-232 serial port to PCIe enabled desktop computers
One 16C650 UART serial port supports data transfer rate up to 250Kbps
Compliant with PCI Express 2.0 Gen 1
Single-lane (x1) PCI Express End-point Controller with PHY integrated
Full serial modem control with hardware and software flow control
$31
JJ-E20611-S1 Technical Specifications
SIIG DP Cyber RS-232 1S PCIe Card Serial Adapter PCIe 2.0 RS-232 x 1
Brand: SIIG
Product Line: SIIG
Model: DP Cyber RS-232 1S PCIe Card
Manufacturer: Siig
Processor
Processor Brand: ASIX
Processor Number: AX99100
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: RS-232
Data Transfer Rate: 250 Kbps
Form Factor: Plug-in card
Host Interface: PCI Express 2.0 x1
Low Profile: Low profile
PCI Specification Revision: PCIe 2.0
Product Type: Serial adapter
Connectivity
Interface Provided: 1 x RS-232 – 9 pin D-Sub (DB-9)
Port Quantity: 1
Network & Adapter Ports: RS-232
Power
Power Consumption Operational: 3 watt
Software
Software Type: Driver
Technical Information
Max Operating Temperature: 140 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 – 90% (non-condensing)
Product Information
Packaged Quantity: 1
Included Items
Cables: 1 x power splitter cable
