JL259A Technical Specifications

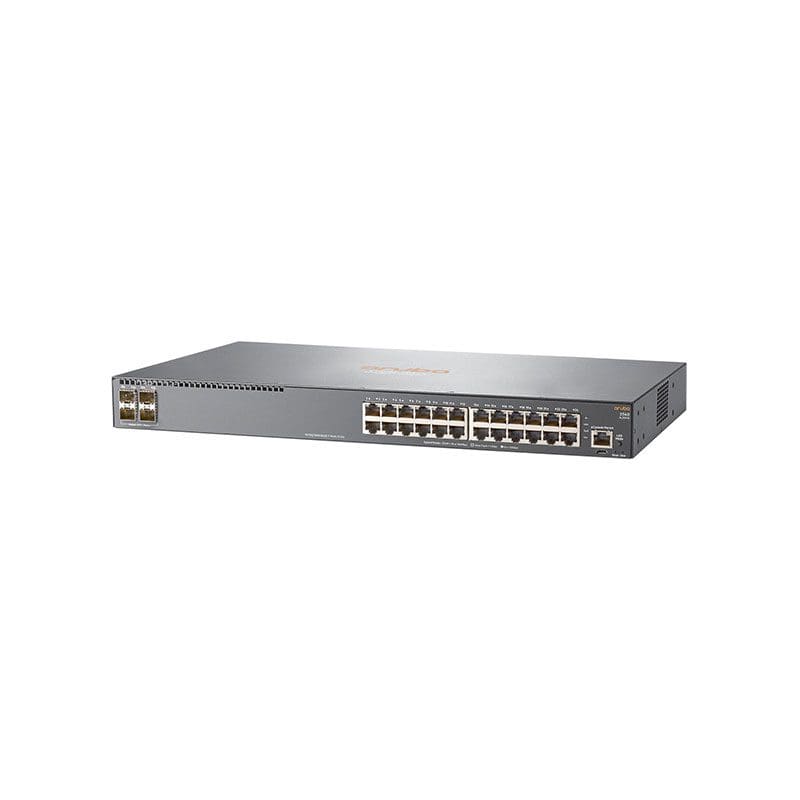

HP Aruba 2930f 24G 4sfp Switch 24 Ports Managed Rack-Mountable
GENERAL INFORMATION :
Device Type :HP Aruba Switch – 24 Ports – L3 – Managed – Stackable
Enclosure Type : Rack-Mountable – 1u Aruba 2930f
Subtype : Gigabit Ethernet
Ports : 24 X 10/100/1000 + 4 sfp Port
Performance : Throughput : 41.7 Mpps ¦ Switching Capacity : 56 Gbps ¦ Latency (1 Gbps) : 3.8 µs
Capacity : Jumbo Frame Size : 9220 ¦ Ipv4 Routing Table Entries : 10000 ¦ Ipv6 Routing Table Entries : 5000
Mac Address Table Size : 32k Entries
Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Bgp, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mld, Cidr
Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Snmp, Telnet, Snmp 3, Snmp 2c, Ssh, Ssh-2, Cli, Xrmon
Encryption Algorithm : Md5, Ssl
Authentication Method : Radius, Pap, Chap, Tacacs,
