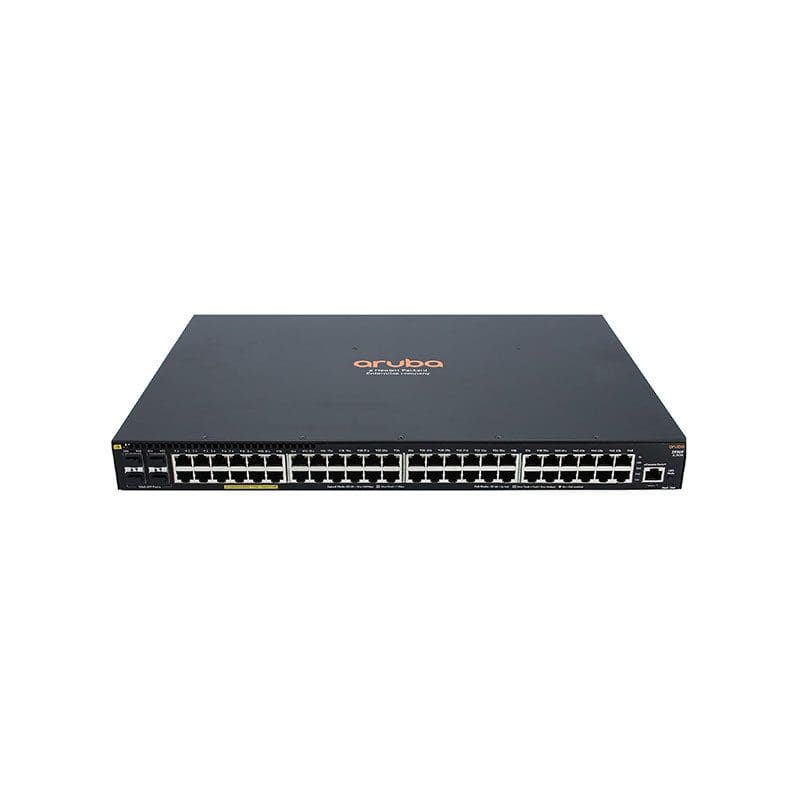

Refurbished JL262A HP Aruba 2930f 48G PoE+ 4sfp

Refurbished JL262A Overview

Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices. A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. The 2930F supports 10GbE uplinks, PoE+, robust QoS, RIP routing, Access OSPF, ACLs, Tunneled Node and IPv6. This JL262A has 48 x 10/100/1000 PoE+ ports and 4 x Gigabit SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 370 Watts.

$1,899

Buy Now
Availability: In Stock
SKU:JL262A-RF
Brand:

Refurbished JL262A Technical Specifications

HP Aruba 2930f 48G PoE+ 4sfp – Switch 48 Ports Managed – Rack-Mountable

GENERAL INFORMATION :
Device Type : Switch – 48 Ports – L3 – Managed 48 Ports Network Switch
Enclosure Type : Rack-Mountable 1u
Subtype : Gigabit Ethernet
Ports : 48 X 10/100/1000 (Poe+) + 4 SFP Ports
Performance : Throughput : 77.4 Mpps ¦ Switching Capacity : 104 Gbps ¦ Latency (1 Gbps) : 3.8 µs
Capacity : Jumbo Frame Size : 9220 ¦ Ipv4 Routing Table Entries : 10000 ¦ Ipv6 Routing Table Entries : 5000
Mac Address Table Size : 32k Entries
Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mld, Cidr
Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Snmp, Telnet, Snmp 3, Snmp 2c, Ssh, Ssh-2, Cli, Xrmon
Encryption Algorithm : Md5, Ssl
Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+
Features : Flow Control, Full Duplex Capability, Dhcp Support, Bootp Support, Arp Support, Vlan Support, Igmp Snooping, Syslog Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Spanning Tree Protocol (Stp) Support, Multiple Spanning Tree Protocol (Mstp) Support, Trivial File Transfer Protocol (Tftp) Support, Access Control List (Acl) Support, Quality Of Service (Qos), Jumbo Frames Support, Dhcp Server, Mld Snooping, Stp Root Guard, Uni-Directional Link Detection (Udld), Lldp Support, Dhcp Relay, Link Aggregation Control Protocol (Lacp), Management Information Base (Mib), Mac Address Lockout, Dynamic Arp Protection, Dhcp Protection, Dynamic Vlan Support (Gvrp), Multiple Vlan Registration Protocol (Mvrp), Neighbor Discovery Protocol (Ndp), Class Of Service (Cos), Snmp Support, Type Of Service (Tos), Openflow Support, Cpu Protection, Internet Control Message Protocol (Icmp), Icmp Router Discovery Protocol (Irdp), Virtual Extensible Lan (Vxlan), Management Information Base (Mib) Ii
Processor : 1 X Arm Cortex-A9 : 1.016 Ghz
Ram : 1 Gb – Ddr3 Sdram
Flash Memory : 4 Gb
EXPANSION / CONNECTIVITY :
Interfaces : 48 X 1000base-T – Rj-45 – Poe+ ¦ 4 X Gigabit Lan – Sfp ¦ 1 X Serial (Console)
Expansion Slots : 1 (Total) / 1 (Free) X Expansion Slot
Installed Modules Qty (Max) : 0 (Installed) / 4 (Max)
POWER :
Power Device : Internal Power Supply
Installed Qty : 1
Power Provided : 459 Watt
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Consumption Operational : 48.6 Watt
