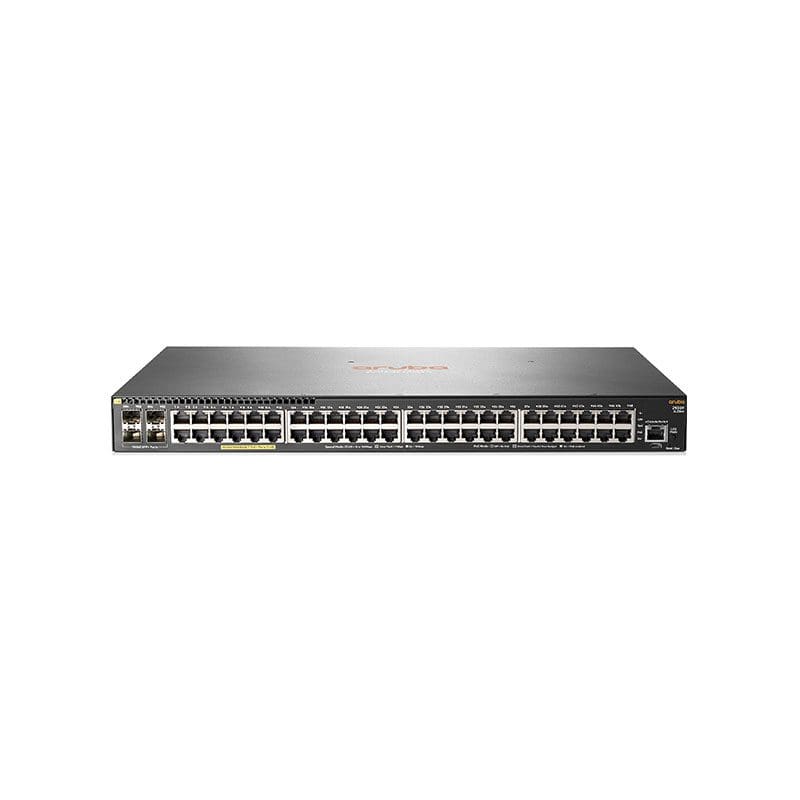

JL262A Technical Specifications
HP Aruba 2930f 48G PoE+ 4sfp – Switch 48 Ports Managed – Rack-Mountable
GENERAL INFORMATION :
Device Type : Switch – 48 Ports – L3 – Managed 48 Ports Network Switch
Enclosure Type : Rack-Mountable 1u
Subtype : Gigabit Ethernet
Ports : 48 X 10/100/1000 (Poe+) + 4 SFP Ports
Performance : Throughput : 77.4 Mpps ¦ Switching Capacity : 104 Gbps ¦ Latency (1 Gbps) : 3.8 µs
Capacity : Jumbo Frame Size : 9220 ¦ Ipv4 Routing Table Entries : 10000 ¦ Ipv6 Routing Table Entries : 5000
Mac Address Table Size : 32k Entries
Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mld, Cidr
Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Snmp, Telnet, Snmp 3, Snmp 2c, Ssh, Ssh-2, Cli, Xrmon
Encryption Algorithm : Md5, Ssl
Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+
Processor : 1 X Arm Cortex-A9 : 1.016 Ghz
Ram : 1 Gb – Ddr3 Sdram
Flash Memory : 4 Gb
EXPANSION / CONNECTIVITY :
Interfaces : 48 X 1000base-T – Rj-45 – Poe+ ¦ 4 X Gigabit Lan – Sfp ¦ 1 X Serial (Console)
Expansion Slots : 1 (Total) / 1 (Free) X Expansion Slot
Installed Modules Qty (Max) : 0 (Installed) / 4 (Max)
POWER :
Power Device : Internal Power Supply
Installed Qty : 1
Power Provided : 459 Watt
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Consumption Operational : 48.6 Watt
