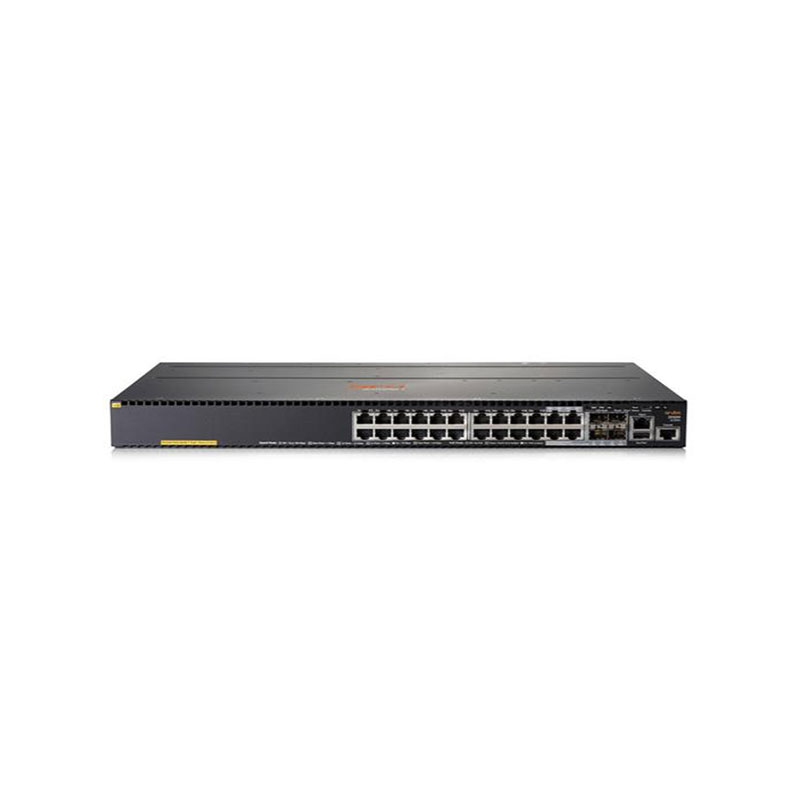

JL319-61101 HP 2930M-24G 24-Port 4-Port SFP Stacking Module Switch
JL319-61101 Overview
The HP JL319-61101 2930M-24G is a Layer 3 managed Gigabit Ethernet switch featuring 24 RJ-45 10/100/1000Base-T ports and 4 SFP uplink ports, with support for stacking modules for scalability. Designed for enterprise edge, branch offices, and SMB networks, it delivers high-performance connectivity, secure management, and flexible expansion options.It supports advanced Layer 3 routing, VLANs, QoS, link aggregation, and robust enterprise-grade security, ensuring efficient traffic handling and network reliability. With its stacking capability, the switch simplifies management and enhances resiliency for growing network environments.
JL319-61101 Technical Specifications
HP 2930M-24G 24-Port 4-Port SFP Stacking Module Switch
Manufacturer Part Number: JL319-61101
Brand Name: HP
Product Type: Layer 3 Managed Gigabit Ethernet Switch
Total Ports: 28
Gigabit Ethernet Ports: 24 x 10/100/1000Base-T RJ-45
SFP Ports: 4 x Gigabit SFP Uplink
Layer Support: Layer 2 / Layer 3
Switching Capacity: 128 Gbps
Forwarding Rate: 95 Mpps
MAC Address Table: 16,000 entries
VLAN Support: 4,094 VLANs
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Static Routing: IPv4/IPv6 Supported
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Queues, 802.1p, DSCP
Security: 802.1X, ACLs, Port Security, RADIUS/TACACS+
Management: Web GUI, CLI, SNMP v1/v2c/v3, REST API
RMON Monitoring: Supported
