JL324-61101 Technical Specifications

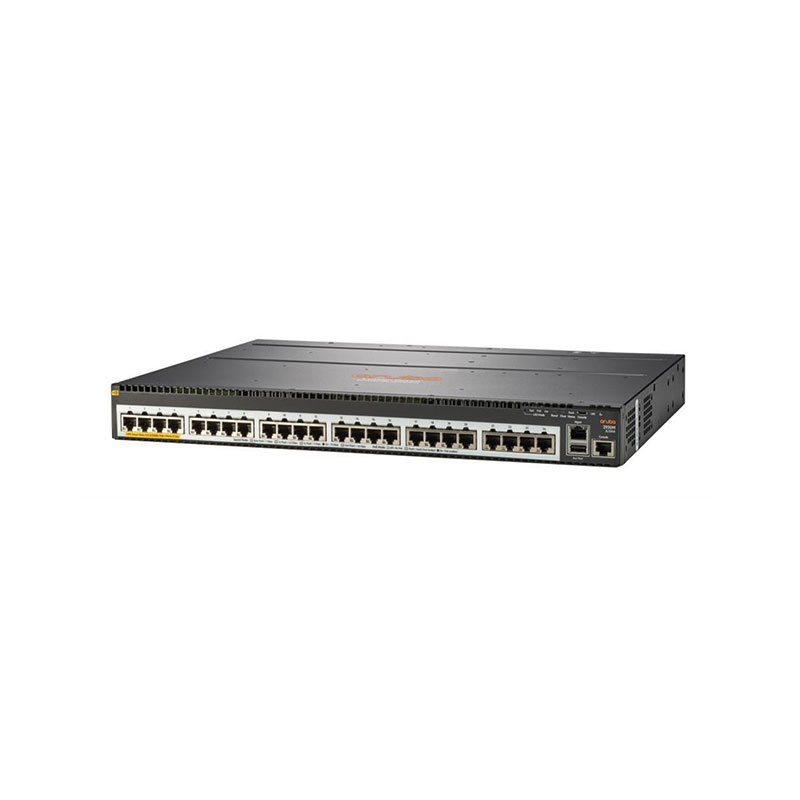

HP 24p Smart Rate PoE+ 840W 1-Slot Switch
Manufacturer Part Number: JL324-61101
Brand Name: HP
Product Type: Layer 3 Managed Gigabit Ethernet Switch
Total Ports: 24
Multi-Gigabit Ports: 24 x 100M/1G/2.5G/5G/10GBase-T Smart Rate RJ-45 PoE+
Expansion Slot: 1 x Modular Slot
Layer Support: Layer 2 / Layer 3
Switching Capacity: 680 Gbps
Forwarding Rate: 505 Mpps
MAC Address Table: 64,000 entries
VLAN Support: 4,094 VLANs
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Static Routing: IPv4/IPv6 Supported
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Queues, 802.1p, DSCP, WMM
Security: 802.1X, ACLs, Port Security, RADIUS/TACACS+
Management: Web GUI, CLI, SNMP v1/v2c/v3, REST API
RMON Monitoring: Supported
Port Mirroring: Supported
Stacking Capability: Aruba VSF Stacking
LED Indicators: Power, Status, Link/Activity, Speed, PoE
Form Factor: 1U Rackmount
