JL355-61001 Technical Specifications

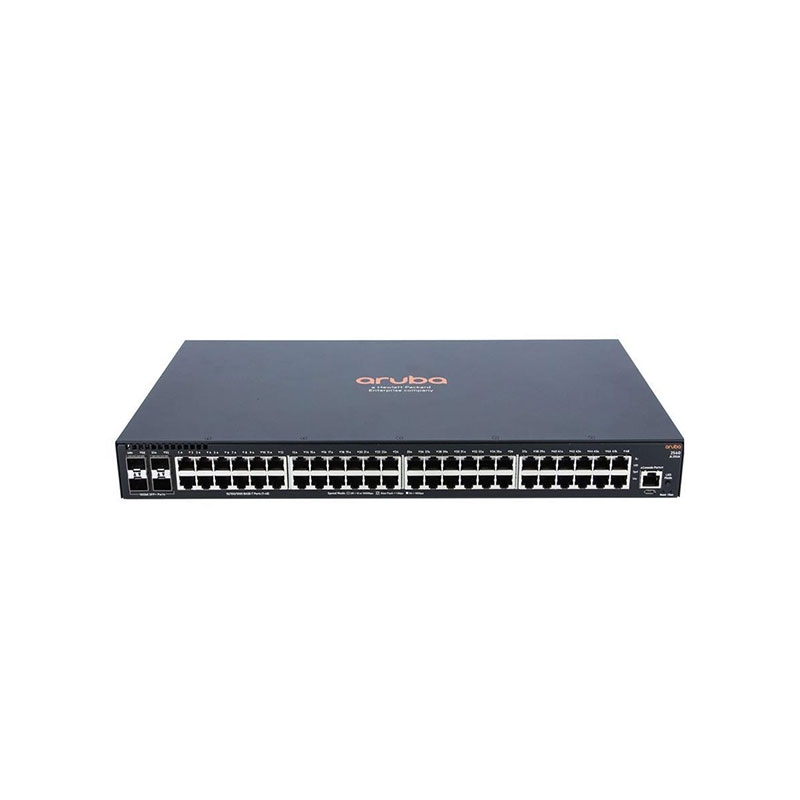

HP 48-Ports 10/100/1000Base-T RJ-45 Manageable Layer2 Rack-mountable Ethernet Switch
Manufacturer Part Number: JL355-61001
Brand Name: HP Aruba
Product Line: Aruba 2930F Series
Product Type: Layer 2 Managed Gigabit Ethernet Switch
Total Ports: 48
Gigabit Ethernet Ports: 48 x 10/100/1000Base-T RJ-45
Expansion Slot: Modular Slot for Uplink/Stacking
Layer Support: Layer 2
Switching Capacity: 176 Gbps
Forwarding Rate: 130.9 Mpps
MAC Address Table: 16,000 entries
VLAN Support: 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Static Routing: Not Supported
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Queues, 802.1p, DSCP
Security: 802.1X, ACLs, Port Security
Management: Web GUI, CLI, SNMP v1/v2c/v3
RMON Monitoring: Supported
Port Mirroring: Supported
Stacking Capability: Aruba Virtual Switching Framework (VSF)
LED Indicators: Power, Status, Link/Activity, Speed
