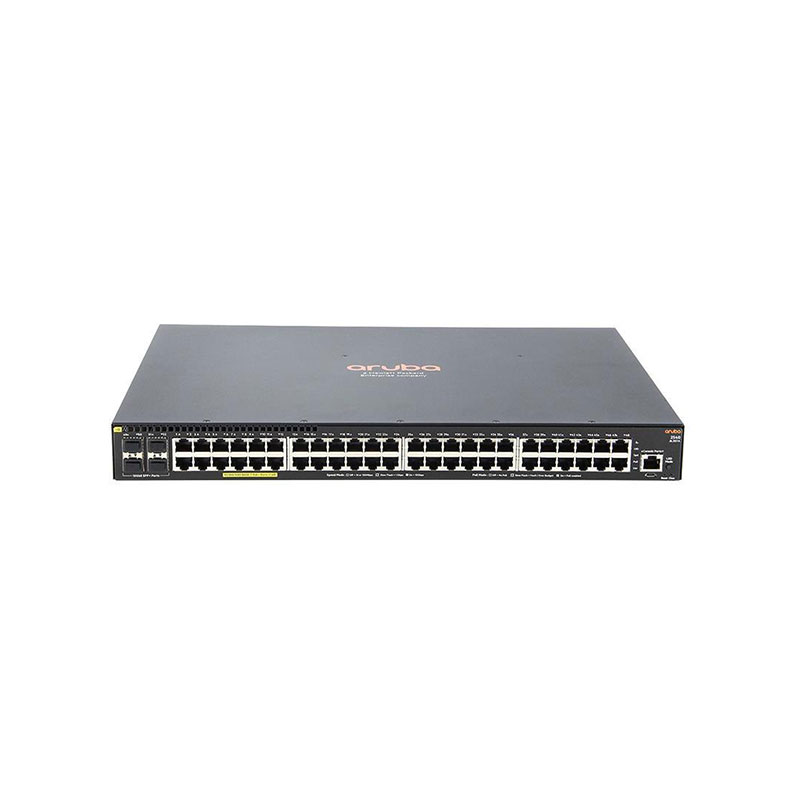

JL357-61101 HPE Aruba PoE+ 48-Ports L2 RJ-45 Switch
JL357-61101 Overview
The HPE Aruba JL357-61101 is an enterprise-class 48-port Gigabit Layer 2 access switch designed to deliver reliable connectivity, Power over Ethernet Plus (PoE+), and simplified management for small to midsize businesses, branch offices, and enterprise edge deployments.It features 48x RJ-45 Gigabit Ethernet ports with PoE+ support, enabling direct powering of access points, IP phones, security cameras, and other powered devices without the need for additional power injectors. With its non-blocking architecture, the switch delivers consistent performance across all ports, supporting bandwidth-intensive applications.
JL357-61101 Technical Specifications
HPE Aruba PoE+ 48-Ports L2 RJ-45 Switch
Manufacturer Part Number: JL357-61101
Brand Name: HPE Aruba
Product Line: Aruba 2930 Series
Product Type: Managed Layer 2 Gigabit Ethernet Switch
Total Ports: 48
Gigabit Ethernet Ports: 48 x 10/100/1000Base-T RJ-45 (PoE+)
Uplink Ports: 4 x 1G SFP (shared/combo)
Switching Capacity: 176 Gbps
Forwarding Rate: 130.9 Mpps
Layer Support: Layer 2
MAC Address Table: 32,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: STP, RSTP, MSTP
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service (QoS): 8 queues, IEEE 802.1p, DSCP
Security: 802.1X, ACLs, Port Security, DHCP Snooping
PoE Support: PoE+ up to 370W
Management: Web UI, CLI, SNMP, RMON
Port Mirroring: Supported
