JL429-61002 Technical Specifications

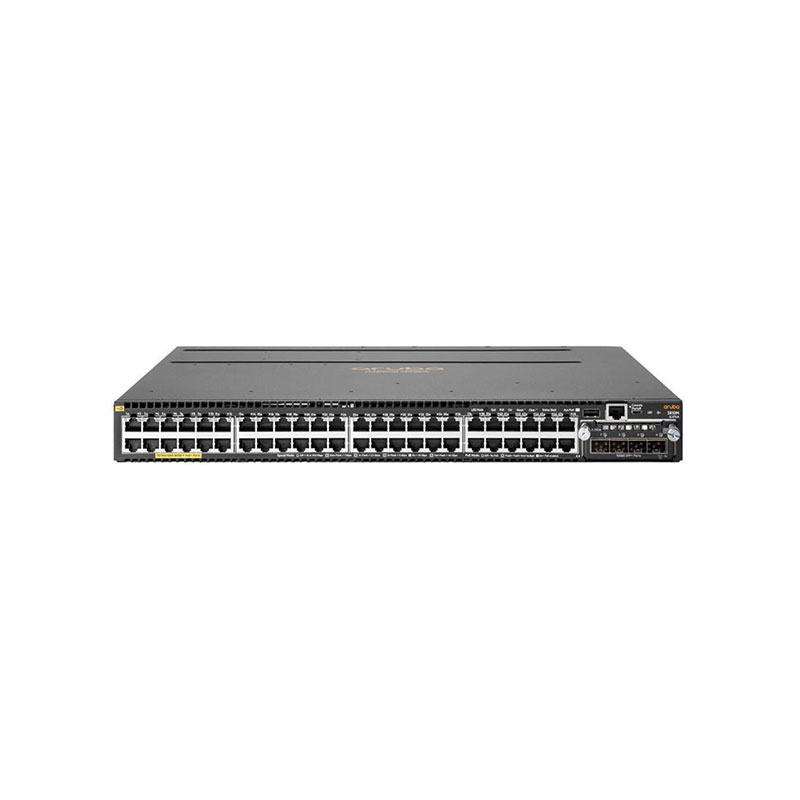

HP Aruba 3810m 48g Poe+ 4sfp+ 1050w Switch 48 Ports Managed Rack-mountable
Manufacturer Part Number: JL429-61002
Brand Name: HP Aruba
Product Line: Aruba 3810M Series
Product Type: Layer 3 Managed Gigabit Ethernet Switch
Total Ports: 48
Port Type: 48 x RJ-45 10/100/1000Base-T + 4 x SFP+ uplink
PoE Support: PoE+ (1050W Power Budget)
Layer Support: Layer 3
Switching Capacity: 336 Gbps
Forwarding Rate: 250 Mpps
MAC Address Table: 128,000 entries
VLAN Support: 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D / 802.1w / 802.1s
Static & Dynamic Routing: IPv4 / IPv6 supported
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 priority queues, IEEE 802.1p, DiffServ
Security: 802.1X, ACLs, Port Security
Management: Web GUI, CLI, SNMP v1/v2c/v3, RMON
Stacking Capability: Aruba Virtual Switching Framework (VSF) supported
