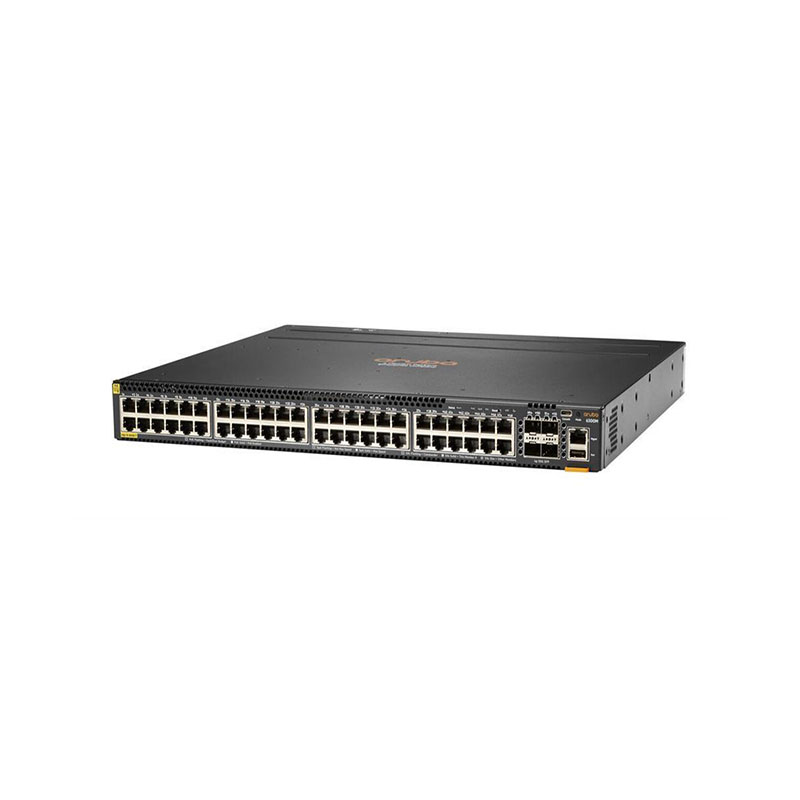

JL661-61101 HPE Aruba 6300M 52-Ports PoE+ GE Switch
JL661-61101 Overview
The HPE Aruba JL661-61101 6300M Switch is a high-performance, Layer 3 managed stackable switch built for modern enterprise access and aggregation deployments. It delivers 52 Gigabit Ethernet ports with PoE+ capability, providing up to 30W of power per port to efficiently support a wide range of connected devices, including Wi-Fi 6 access points, IP surveillance cameras, and VoIP phones.Powered by the ArubaOS-CX operating system, the JL661-61101 introduces intelligent automation, programmability, and advanced analytics to simplify day-to-day operations. Features such as the Network Analytics Engine (NAE), REST APIs, and Python scripting allow IT teams to automate tasks, monitor traffic in real time, and proactively troubleshoot network performance.
JL661-61101 Technical Specifications
HPE Aruba 6300M 52-Ports PoE+ GE Switch
Manufacturer Part Number: JL661-61101
Brand Name: HPE Aruba
Product Type: Layer 3 Managed Stackable Gigabit Ethernet Switch
Total Ports: 52
Port Type: 48 x 10/100/1000Base-T RJ-45 PoE+ + 4 x 50GbE SFP56 uplink
PoE Support: PoE+ (IEEE 802.3at, Class 6)
Layer Support: Layer 2 / Layer 3
Switching Capacity: 880 Gbps
Forwarding Rate: 654 Mpps
MAC Address Table: 128,000 entries
VLAN Support: 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Routing: Static & Dynamic IPv4/IPv6, OSPF, BGP
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 queues, traffic prioritization
Security: 802.1X, ACLs, DHCP Snooping, Port Security
Management: Web GUI, CLI, SNMP v1/v2c/v3, REST API
Stacking Capability: Aruba VSF (Virtual Switching Framework)
Form Factor: 1U Rack-mountable
