JL675A Technical Specifications

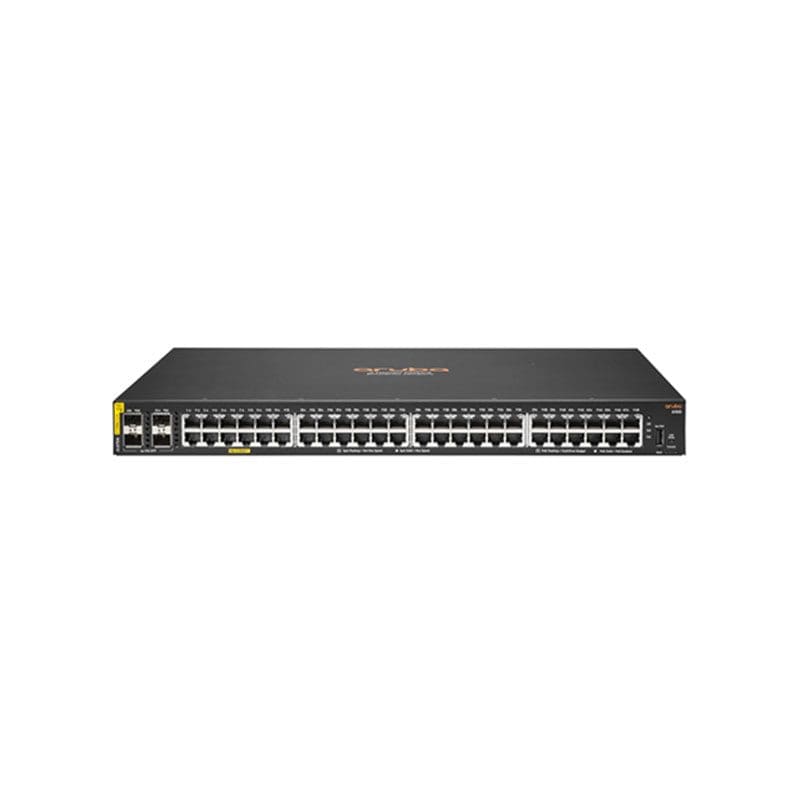

Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch – 48 Ports – 3 Layer Supported – Modular – 45 W Power Consumption – 370 W PoE Budget – Twisted Pair, Optical Fiber – PoE Ports – 1U High – Rack-mountable
Device Type : Switch – 52 Ports – L3 – Managed – Stackable
Enclosure Type : Side To Side Airflow Rack-mountable 1u
Subtype: 10 Gigabit Ethernet
Ports : 48 X 10/100/1000 (poe+) + 4 X 1 Gigabit / 10 Gigabit Sfp+
Power Over Ethernet (poe) : Poe+
Poe Budget : 370 W
Performance : Switching Capacity: 176 Gbps Throughput: 98.6 Latency (1 Gbps): 1.9 Latency (10 Gbps): 1.8
Capacity : Switched Virtual Interfaces (svis): 16 Arp Entries: 1024 Ipv4 Routes (unicast): 512 Ipv6 Routes (unicast): 512 Igmp Groups: 512 Mld Groups: 512 Ipv4 Acl Entries (ingress): 256 Ipv6 Acl Entries (ingress): 128 Mac Acl Entries (ingress): 256
Mac Address Table Size : 8192 Entries
Routing Protocol : Igmpv2, Igmpv3
Encryption Algorithm : Ssl
Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
Compliant Standards : Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.3at, Ieee 802.3az
Processor : 1 X Arm A9: 1.016 Ghz
Ram : 4 Gb Ddr3 Sdram
Flash Memory : 16 Gb
