JL677A Technical Specifications

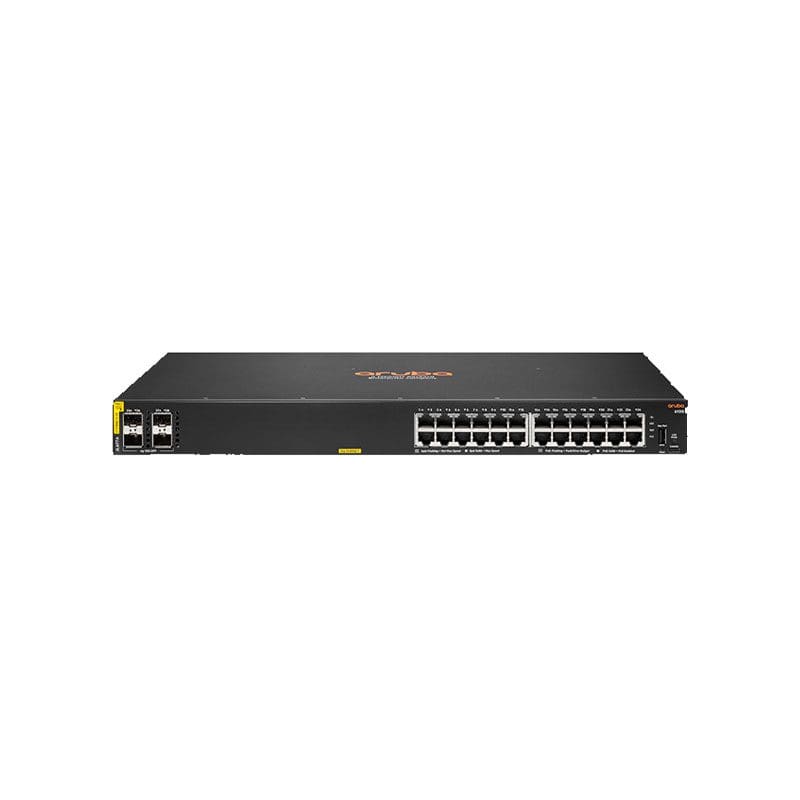

Aruba 6100 24G Class4 PoE 4SFP+370W Switch 24 Ports
Switch – 28 Ports – L3 – Managed – Stackable
Enclosure Type : Side To Side Airflow Rack-mountable 1u
Subtype : 10 Gigabit Ethernet
Ports : 24 X 10/100/1000 (poe+) + 4 X 1 Gigabit / 10 Gigabit Sfp+
Power Over Ethernet (poe) : Poe+
Poe Budget : 370 W
Performance : Switching Capacity: 128 Gbps ¦ Throughput: 95.2 Mpps ¦ Latency (1 Gbps): 1.5 Μs ¦ Latency (10 Gbps): 1.8 Μs
Capacity : Switched Virtual Interfaces (svis): 16 ¦ Arp Entries: 1024 ¦ Ipv4 Routes (unicast): 512 ¦ Ipv6 Routes (unicast): 512 ¦ Igmp Groups: 512 ¦ Mld Groups: 512 ¦ Ipv4 Acl Entries (ingress): 256 ¦ Ipv6 Acl Entries (ingress): 128 ¦ Mac Acl Entries (ingress): 256
Mac Address Table Size : 8192 Entries
Routing Protocol : Igmpv2, Igmpv3
Encryption Algorithm :
Ram : 4 Gb Ddr3 Sdram
Flash Memory : 16 Gb
