JL725A Technical Specifications

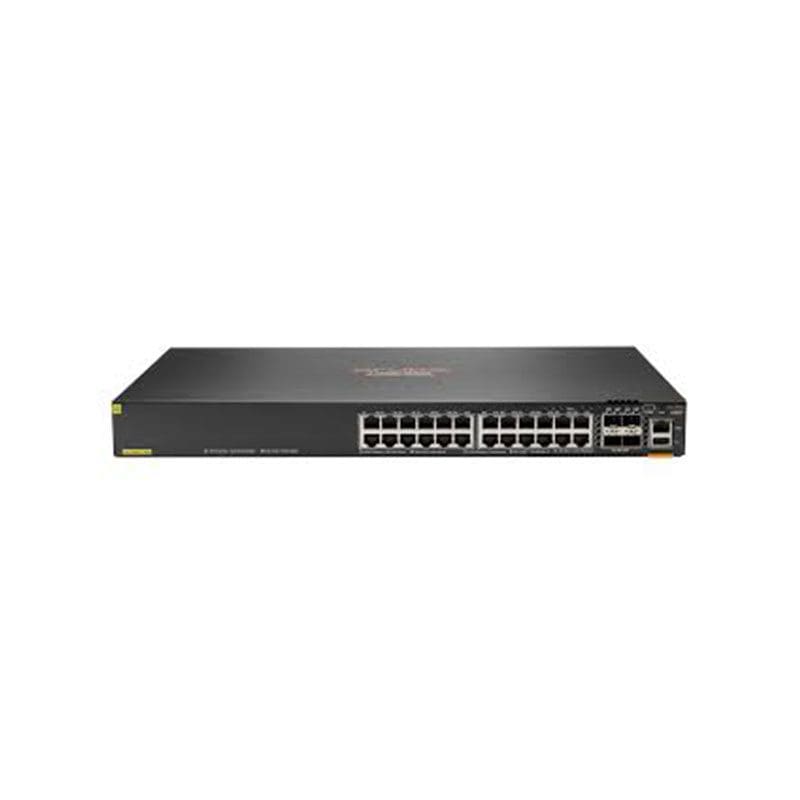

HPE Aruba 6200f 24g Class4 Poe 4sfp+ 370w Switch
Manufacturer: HPE Aruba
Manufacturer Part Number: JL725A
Key Features :
Device Type : Switch – 28 Ports – L3 – Managed – Stackable
Enclosure Type : Rack-mountable 1u
Subtype : 10 Gigabit Ethernet
Ports : 24 X 10/100/1000 (poe+) + 4 X 1 Gigabit / 10 Gigabit Sfp+
Power Over Ethernet (poe): Poe+
Poe Budget : 370 W
Expansion / Connectivity:
Interfaces :
24 X 10/100/1000 Base-t Rj-45 Poe+
4 X 1/10gbit Lan Sfp+
Performance :
Switching Capacity: 128 Gbps ¦ Throughput: 130.9 Mpps ¦ Latency (1 Gbps): 2.28 Μs ¦ Latency (10 Gbps): 1.46 Μs ¦ Throughput: 95.2 Mpps
power : Ac 120/230 V
dimensions (wxdxh): 17.4 In X 12.9 In X 1.7 In
Processor : 1 X Arm Cortex-a72: 1.8 Ghz
Power Voltage Required : Ac 120/230 V
Power Consumption Operational : 65 Watt
