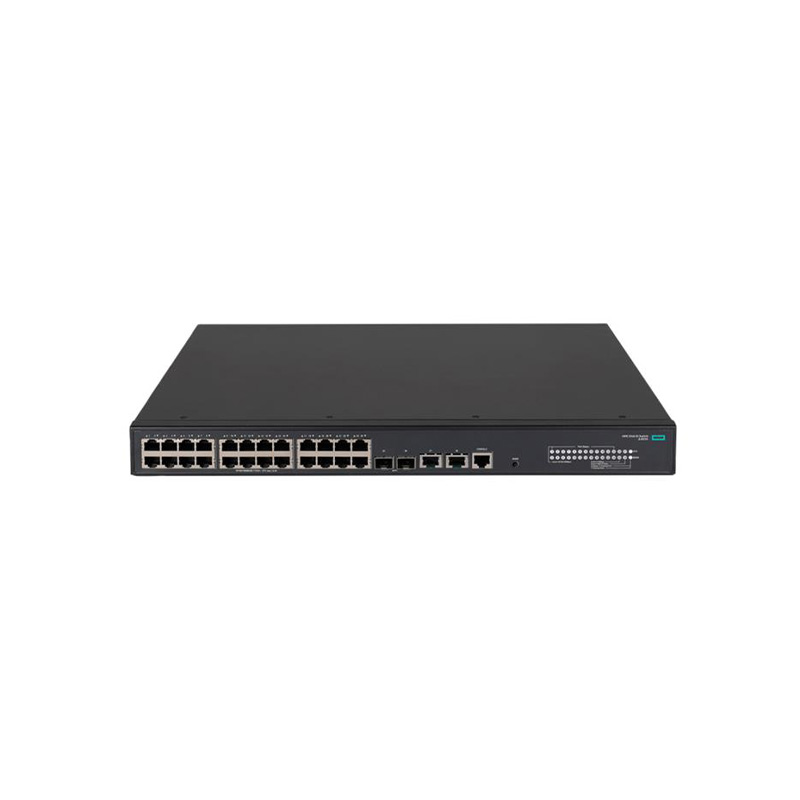

JL823-61001 HP FlexNetwork Ports Gigabit Ethernet Network Switch
JL823-61001 Overview
The HP FlexNetwork JL823-61001 is a powerful enterprise-class Gigabit Ethernet switch built for scalability and high-performance networking environments. It provides 24 Gigabit RJ-45 ports for flexible copper connectivity along with 2 high-speed 10GbE SFP+ uplinks and 2 dedicated RJ-45 uplink ports to support both fiber and copper expansion. Although listed as “unmanaged,” this model is actually aligned with advanced Layer 3 switching capabilities, supporting routing functions, VLANs, and traffic optimization for complex enterprise infrastructures.
JL823-61001 Technical Specifications
HP FlexNetwork Ports 10/100/1000Base-T 2 x SFP+ 2 x RJ-45 Layer 3 Unmanaged Gigabit Ethernet Network Switch
Manufacturer: HP
Manufacture Part Number: JL823-61001
Form Factor: Rack-mountable / 1U compact
Ports: 24 x 10/100/1000Base-T RJ-45 Gigabit Ethernet
Uplink: 2 x 10GbE SFP+
Additional Ports: 2 x RJ-45 Gigabit uplink
Layer: Layer 3 feature set
Switching Capacity: ~128 Gbps
Forwarding Rate: ~95 Mpps
MAC Address Table: 32K entries
Packet Buffer: 2 MB
Management: Typically managed via CLI, Web, or SNMP
Power Supply: Internal fixed AC
Operating Temperature: 0°C to 45°C
Dimensions: 44.25 x 30.4 x 4.39 cm
