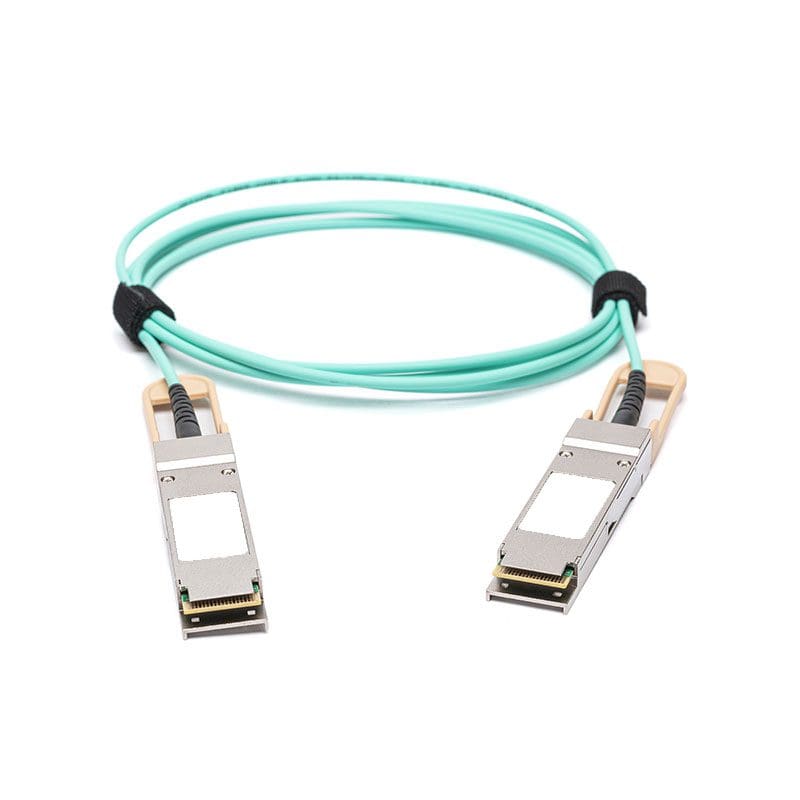

JNP-100G-AOC-3M Juniper 100GBase-AOC Direct Attach Cable

JNP-100G-AOC-3M Technical Specifications

Juniper Networks 100GBase-AOC Direct Attach Cable 3m

Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: JNP-100G-AOC-3M
Brand Name: Juniper
Product Name: Fiber Optic Network Cable
Product Type: Network Cable
Technical Information
Cable Type: Fiber Optic
Cable Length: 9.84 ft
Connector on First End: QSFP Network
Connector on Second End: QSFP Network
Features Active
Device Supported: Network Device
Data Transfer Rate: 100 Gbit/s
Standards compliance (Ethernet/OTN Standard, for e.g. 100GBASE-LR4): IEEE802.3 -2012, IEEE802.3bm
MSA compliance (SFF, for e.g. SFF-8665): SFF-8665
Signaling rate, each lane: 10 Gbps through 25.781 Gbps
Cable type: N/A
Distance: 3 m
Maximum Power consumption (W): 3.5 W
Operating Temperature (range): 0° C to 70° C
Storage temperature: –40° C to 85° C
