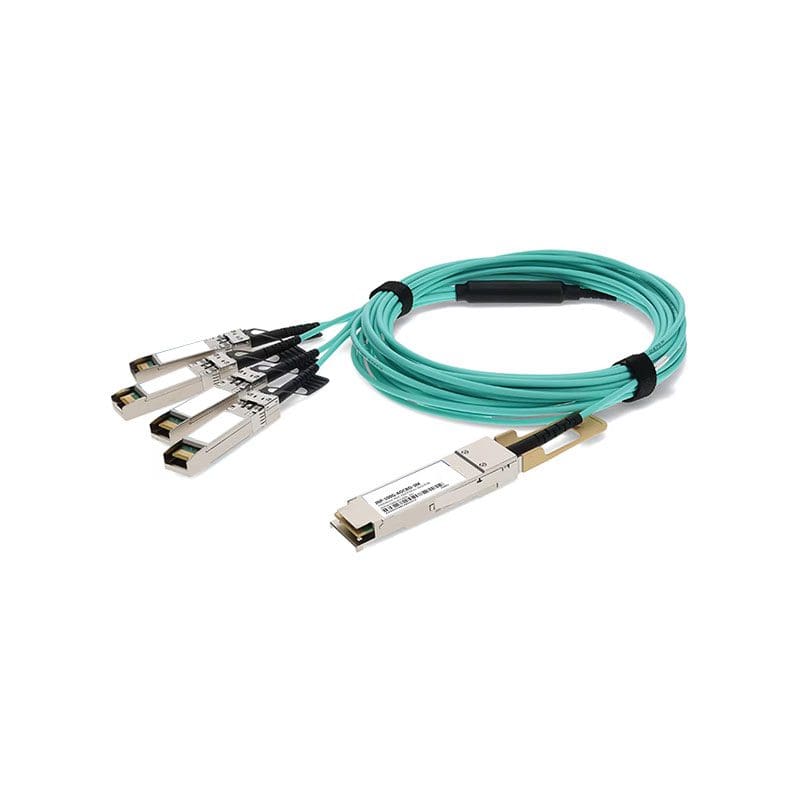

JNP-100G-AOCBO-3M Juniper QSFP28/SFP Network Cable

JNP-100G-AOCBO-3M Technical Specifications

Juniper QSFP28/SFP Network Cable

Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: JNP-100G-AOCBO-3M
Brand Name: Juniper
Product Name: QSFP28/SFP Network Cable
Product Type: Network Cable
Technical Information
Cable Type: QSFP28/SFP
Cable Length: 9.84 ft
Connector on First End: QSFP28 Network
Connector on Second End: 4 x SFP Network
Device Supported: Network Device
Data Transfer Rate: 100 Gbit/s
Digital Diagnostic Monitoring: Tx Power, Rx Power, Bias Current, Case Temperature, Power Supply Voltage
Signaling rate, each lane: 25.78125Gbd +/- 100ppm
Cable type: N/A
Distance: 3 m
Maximum Power consumption (W): QSFP28 end: 3.5 W; SFP28 end: 1 W
Operating Temperature (range): 0° C to 70° C
Storage temperature: –40° C to 85° C
Optic Type (Commercial Vs Service Provider Grade): OM3
