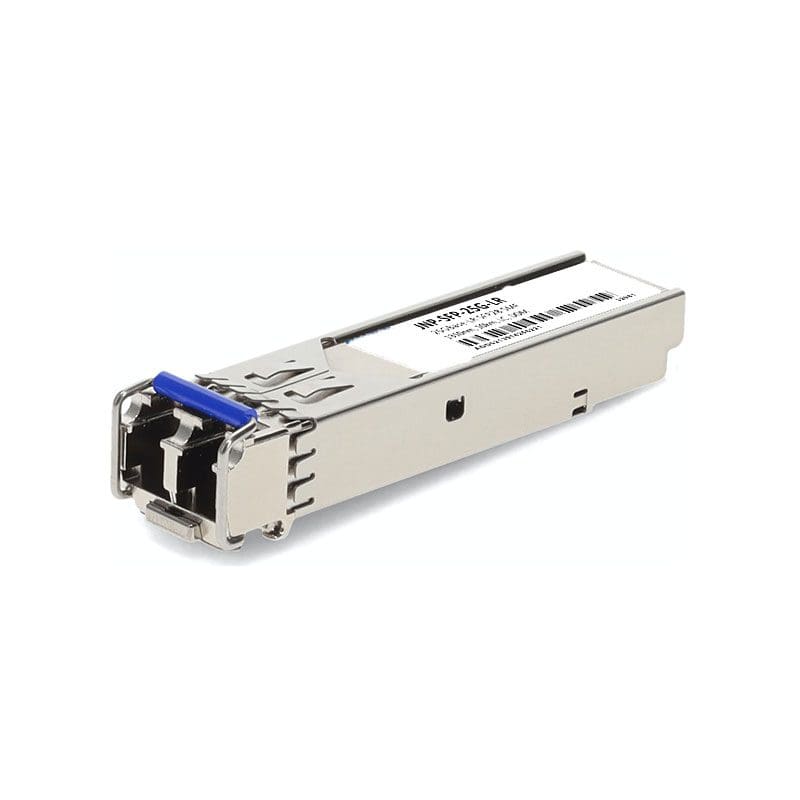

JNP-SFP-25G-LR Juniper Network SFP28 Transceiver Module

JNP-SFP-25G-LR Technical Specifications

Juniper Network SFP28 Transceiver Module

Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: JNP-SFP-25G-LR
Brand Name: Juniper
Product Name: SFP28 Module
Product Type: SFP28
Technical Information
Application/Usage Data Networking, Optical Network
Interfaces/Ports
Interfaces/Ports Details 1 x 25GBase-LR Network
Media & Performance
Media Type: Supported Optical Fiber
Fiber Mode Supported Single-mode
Ethernet Technology: 25 Gigabit Ethernet
Network Technology: 25GBase-LR
LRMSA compliance (SFF, for e.g. SFF-8665): SFF-8402
Digital Diagnostic Monitoring: Transceiver temperature, Transceiver supply voltage, TX bias current, TX output power, RX received optical power
Signaling rate, each lane: 25.78125 GBd ± 100 ppm
Transmitter fibers: 1
Transmitter wavelengths (range): 1295 to 1325 nm
Receive lane wavelengths (range): 1295 to 1325 nm
