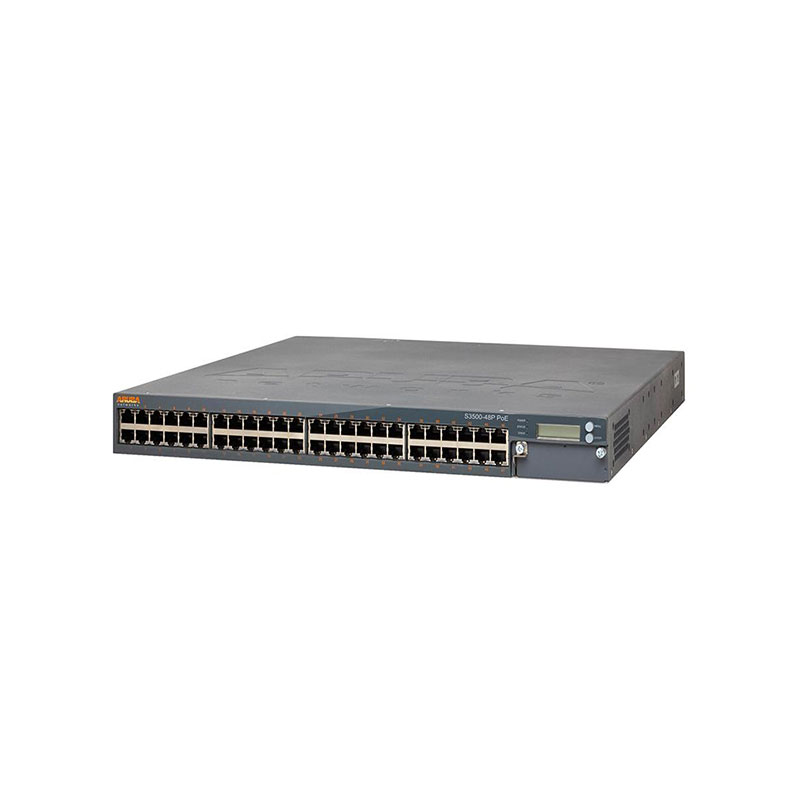

JW662-61001 HP S3500-48P 48 x Ports PoE+ 10/100/1000Base-T
JW662-61001 Overview
The HP JW662-61001 S3500-48P is a 48-port managed Gigabit Ethernet switch designed for enterprise edge, branch, and SMB networks that require Power over Ethernet Plus (PoE+) support. All 48 RJ-45 ports provide 10/100/1000Base-T connectivity, delivering flexible high-speed network access for users, endpoints, and powered devices. With PoE+ capability, it can power IP phones, wireless access points, security cameras, and other PoE-enabled devices directly through the Ethernet cabling, reducing the need for external power adapters.The S3500 series integrates advanced Layer 2 and Layer 3 features, offering VLANs, QoS, static routing, and security controls, making it suitable for both access and distribution layers.
JW662-61001 Technical Specifications
HP S3500-48P 48 x Ports PoE+ 10/100/1000Base-T
Manufacturer Part Number: JW662-61001
Brand Name: HP
Product Line: HP 3500 Series
Product Type: Managed Layer 3 Switch
Total Ports: 48
Port Type: 10/100/1000Base-T RJ-45
PoE Support: PoE+ (IEEE 802.3af/at)
Uplink Ports: Optional SFP/SFP+ (depending on module)
Switching Capacity: ~176 Gbps
Forwarding Rate: ~131 Mpps
Layer Support: Layer 2 / Layer 3
VLAN Support: 4K VLANs (IEEE 802.1Q)
Link Aggregation: IEEE 802.3ad (LACP)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Routing Protocols: Static, RIP, OSPF
Stacking: Supported (via modules)
Security: 802.1X, ACLs, port security
QoS: Traffic prioritization, rate limiting
Management: Web GUI, CLI, SNMP, RMON
High Availability: Redundant hot-swappable PSU/fan support
Form Factor: Rack-mountable 1U
Power Supply: Internal, PoE+ capable
Power Consumption: Dependent on PoE load
Cooling: Integrated fan
