JW735A Aruba 7205 Wireless LAN Controller USB Desktop

JW735A Technical Specifications

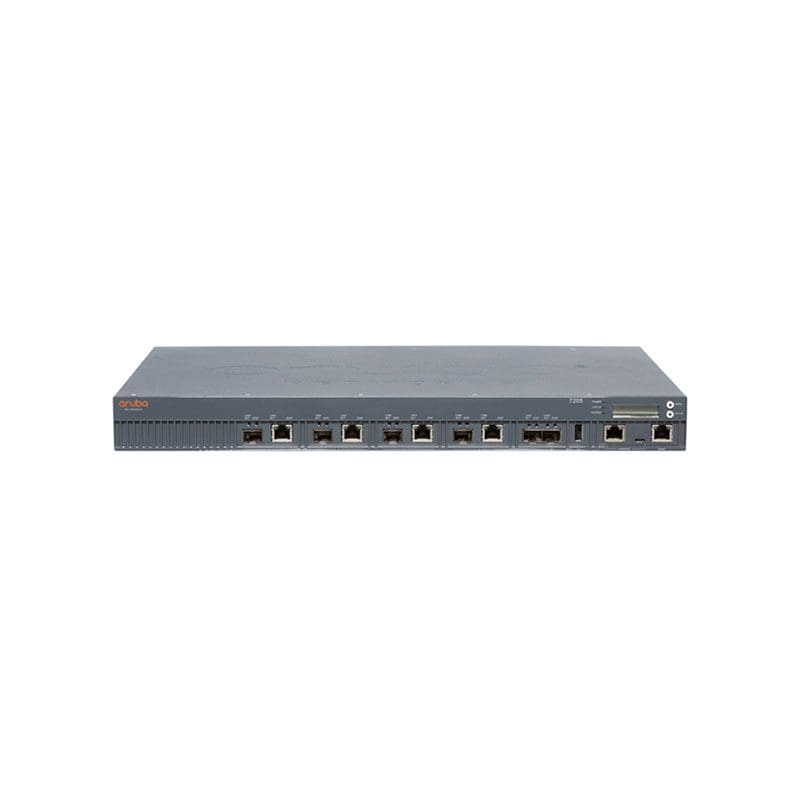

Aruba 7205 Wireless LAN Controller 4 x Network (RJ-45) USB Desktop

Maximum campus or remote AP licenses

256

Maximum concurrent users/devices

8,192

Maximum VLANs

4,096

Active firewall sessions

1 million (M)

Concurrent GRE tunnels

4,096

Concurrent IPsec sessions

8,192

Concurrent SSL sessions

4,096

Firewall throughput (Gbps)

12

Wired Bridged Throughput (Gbps)

12

Encrypted throughput 3DES (Gbps)

5

Encrypted throughput AES-CBC-256 (Gbps)

5

Encrypted throughput AES-CCM (Gbps)

5

Encrypted throughput AES-GCM-256 (Gbps)

5
