KCD8XPUG3T20 Kioxia 3.2TB TLC PCI E NVMe (SSD)
KCD8XPUG3T20 Overview

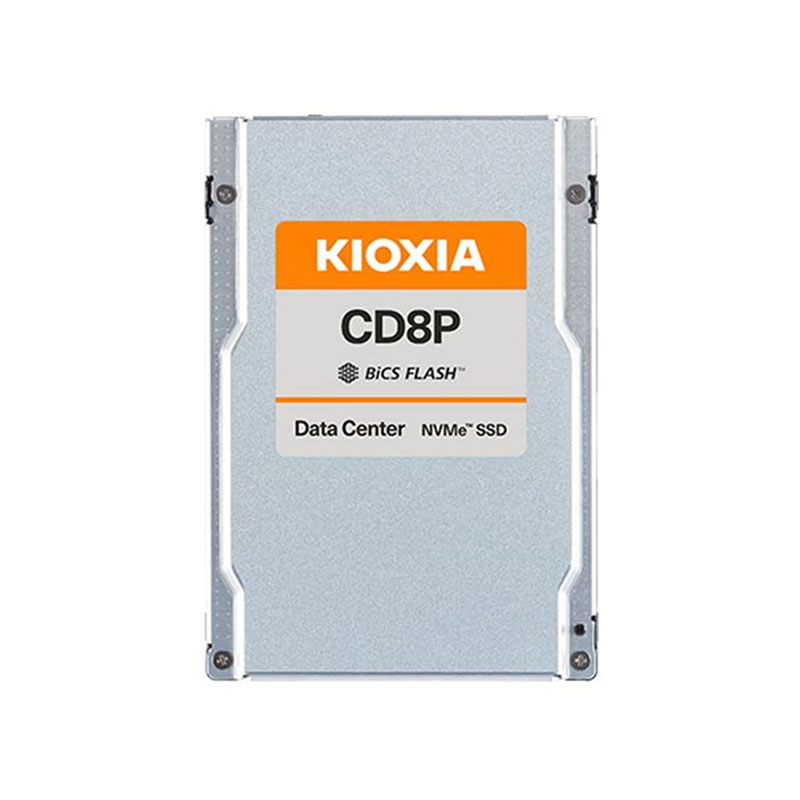

The Kioxia CD8P‑V Series 3.2 TB SSD (Model KCD8XPUG3T20) is a high‑performance enterprise NVMe solid‑state drive built to meet the needs of next‑generation data centers, cloud infrastructures, and mixed‑workload server environments. It uses a PCI Express 5.0 x4 interface with the NVMe 2.0 protocol, offering a major performance uplift compared with PCIe 4.0 drives — including significantly faster sequential throughput and improved I/O responsiveness.
With a 3.2 terabyte capacity and a 2.5‑inch, 15 mm U.3 form factor, this SSD fits typical hot‑swap enterprise server bays and storage enclosures, making it ideal for virtualized platforms, large databases, and high‑density storage clusters.
$2,099
KCD8XPUG3T20 Technical Specifications
Kioxia CD8P-V Series 3.2TB Mixed Use TLC PCI Express 5.0 x4 NVMe 2.5-inch Internal Solid State Drive (SSD)
Brand: Kioxia
Series: CD8P‑V
Model/Part: KCD8XPUG3T20
Capacity: 3.2 TB
Drive Type: Enterprise / Data Center SSD
Form Factor: 2.5‑inch U.3 (15 mm)
Interface: PCIe 5.0 x4 NVMe 2.0
NAND Type: BiCS FLASH TLC
Sequential Read: ~12,000 MB/s
Sequential Write: ~5,500 MB/s
Random Read: ~1,900,000 IOPS
Random Write: ~400,000 IOPS
Endurance: ~3 DWPD (Mixed Use)
Power Loss Protection: Yes (PLP)
End‑to‑End Data Protection: Yes
MTBF: ~2,500,000 hours
Power Consumption: ~19 W active, ~5 W idle
