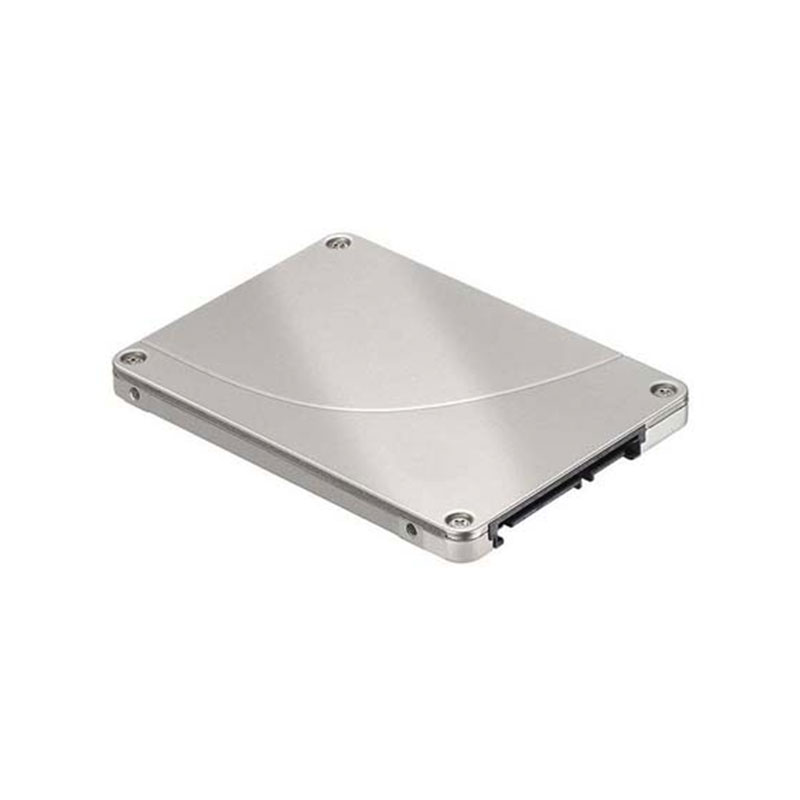

KCD8XPUG7T68 Kioxia 7.68TB TLC PCI E NVMe Solid State Drive (SSD)
KCD8XPUG7T68 Overview
The KIOXIA CD8P‑R 7.68TB PCIe 5.0 NVMe SSD is a high‑performance, enterprise‑class NVMe solid‑state drive from KIOXIA’s CD8P‑R Series designed for read‑intensive data‑center workloads. It uses the PCI Express 5.0 ×4 NVMe 2.0 interface, which provides significantly greater bandwidth and lower latency than previous PCIe generations, helping accelerate tasks such as large‑scale virtualization, cloud services, online transaction processing, big data analytics, and content delivery. The drive is built with KIOXIA BiCS FLASH™ TLC NAND memory and delivers very high sequential read throughput (up to ~12,000 MB/s) along with strong sequential write and random I/O performance — with random reads up to about 2,000,000 IOPS and random writes around ~200,000 IOPS, enabling responsive access to large datasets under heavy loads.
$2,749
KCD8XPUG7T68 Technical Specifications
Kioxia CD8P-R Series 7.68TB Read Intensive TLC PCI Express 5.0 x4 NVMe 2.5-inch Internal Solid State Drive (SSD)
Manufacturer : KIOXIA
Manufacturer Part Number : KCD8XPUG7T68
Storage Capacity: 7.68 TB
Internal solid state drive, enterprise class
Read‑intensive workloads (1 DWPD)
SIE (Sanitize Instant Erase) security supported
Interface & Form Factor
PCI Express 5.0 x4
NVMe 2.0 protocol
U.3 / 2.5‑inch form factor
15 mm drive height
NAND & Technology
3D TLC NAND
Enterprise-grade reliability and power-loss protection
Performance
Sequential read up to ~12,000 MB/s
Sequential write up to ~5,500 MB/s
Random read up to ~2,000,000 IOPS
Random write up to ~200,000 IOPS
Endurance & Reliability
Endurance: ~1 DWPD
MTBF: ~2.5 million hours
Power & Environment
Typical active power ~21 W
Idle power ~5 W
Operating temperature ~0 °C – 73 °C
Physical
Width ~69.8 mm, length ~100.5 mm, height ~15 mm
Weight ~130 g
