KF318C10BRK2/16 Kingston Beast Beast Red 16GB Kit Memory Module
KF318C10BRK2/16 Overview

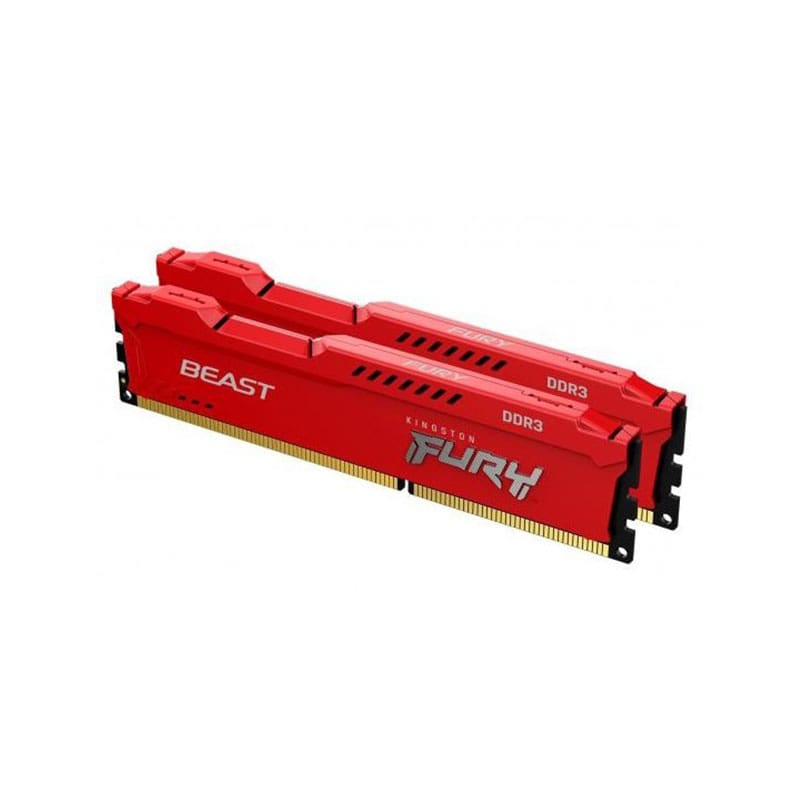

Kingston Beast Beast Red 16GB Kit (2 X 8GB) PC3-14900 DDR3-1866MHz non-ECC Unbuffered CL10 240-Pin DIMM Memory Module. Kingston FURY KF318C10BRK2/8 is a kit of two 1G x 64-bit (8GB) DDR3-1866 CL10 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 512M x 8-bit FBGA components per module. Total kit capacity is 16GB. Each module has been tested to run at DDR3-1866 at a low latency timing of 10-11-10 at 1.5V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 240-pin DIMM uses gold contact fingers.
KF318C10BRK2/16 Technical Specifications
Kingston Beast Beast Red 16GB Kit (2 X 8GB) PC3-14900 DDR3-1866MHz non-ECC Unbuffered CL10 240-Pin DIMM Memory Module
Manufacturer: Kingston
Brand: Kingston
JEDEC standard 1.5V Power Supply
VDDQ = 1.5V
800MHz fCK for 1600Mb/sec/pin
8 independent internal bank
Programmable CAS Latency: 11, 10, 9, 8, 7, 6
Programmable Additive Latency: 0, CL – 2, or CL – 1 clock
8-bit pre-fetch
Bi-directional Differential Data Strobe
Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
On Die Termination using ODT pin
Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
Asynchronous Reset
Height 1.338” (34mm) w/heatsink
