KVR48U40BS8-16 Technical Specifications

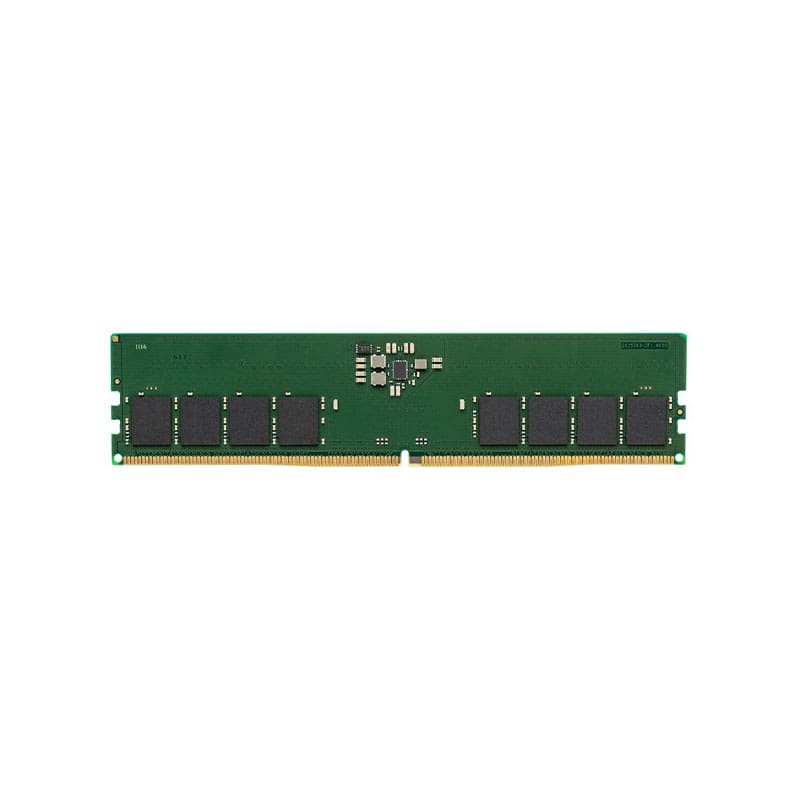

Kingston ValueRAM DDR5 module 16 GB DIMM 288-pin 4800 MHz / PC5-3
Brand: Kingston
Product Line: Kingston ValueRAM
Manufacturer: Kingston Technology Company
Memory
Chips Organization: 2048 x 8
Data Integrity Check: Non-ECC
Latency Timings: 40-39-39
Memory Specification Compliance: PC5-38400
Memory Speed: 4800 megahertz
Memory Technology: DDR5 SDRAM
Memory Type: DRAM
Memory Voltage: 1.1 volt
Module Configuration: 2048 x 64
Registered or Buffered: Unbuffered
Ram Capacity: 16 GB
Upgrade Type: Generic
Technical Information
CAS Latency: CL40
Form Factor (RAM): DIMM 288-pin
Plating: Gold
Product Information
Packaged Quantity: 1
Product Type: Memory module
RAM Features: Serial Presence Detect (SPD), Single rank
Dimensions & Weight
Height: 1.2 inch
Module Height (inch): 1.23
Width: 5.2 inch
Certifications & Listings
Compliant Standards: Halogen-free, JEDEC, RoHS
