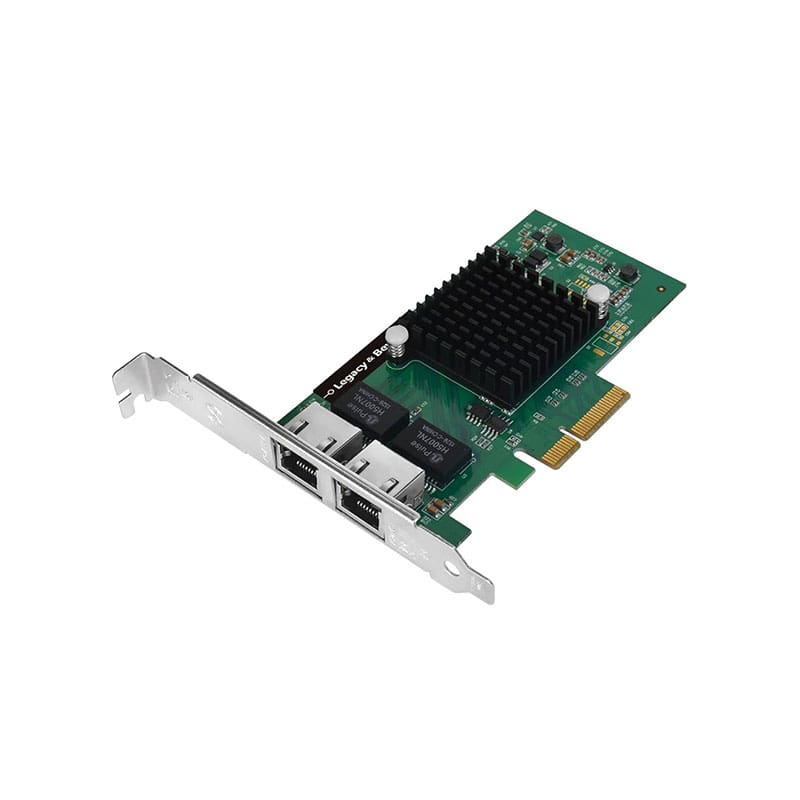

LB-GE0014-S1 SIIG Dual-Port Gigabit Ethernet PCIe 4-Lane Card
LB-GE0014-S1 Overview
SIIG’s Dual-Port Gigabit Ethernet PCIe 4-Lane card – I350-T2 is designed to add two RJ-45 Gigabit Ethernet ports to your PCI Express enabled server or desktop system. It delivers up to 1000 Mb/s data transfer rate for high speed, high-bandwidth data or multimedia content transferring. It also supports full duplex mode with Wake-On-LAN power management feature for increased speed and power efficiency. This Ethernet adapter card can be installed in a standard or low profile computer chassis with the included low profile bracket. It instantly enhances your networking performance with high speed, high-bandwidth reliable network connectivity from a workstation with 10/100/1000 Ethernet port or without networking capability.
$105
LB-GE0014-S1 Technical Specifications
SIIG Dual-Port Gigabit Ethernet PCIe 4-Lane Card I350-T2 Network Adapter PCIe x4 Gigabit Ethernet x 2
Brand: SIIG
Manufacture Part Number: LB-GE0014-S1
Product Line: SIIG
Model: Dual-Port Gigabit Ethernet PCIe 4-Lane Card – I350-T2
Manufacturer: Siig
Network & Communication
Cable Type: Ethernet 1000Base-T
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Form Factor: Plug-in card
Host Interface: PCI Express x4
controller
Low Profile: Low profile
PCI Specification Revision: PCIe 2.1
Product Type: Network adapter
Connectivity
Interface Provided: 2 x 1000Base-T – RJ-45
Port Quantity: 2
Network & Adapter Ports: 10/100/1000
Product Information
Packaged Quantity: 1
Included Items
Included Accessories: Low-profile bracket
Dimensions & Weight
Height: 4.7 inch
Weight: 2.72 ounce
Width: 0.8 inch
Depth: 5.4 inch
Physical Characteristics
Color: Green
Color Category: Green
Certifications & Listings
Compliant Standards: FCC, RoHS
