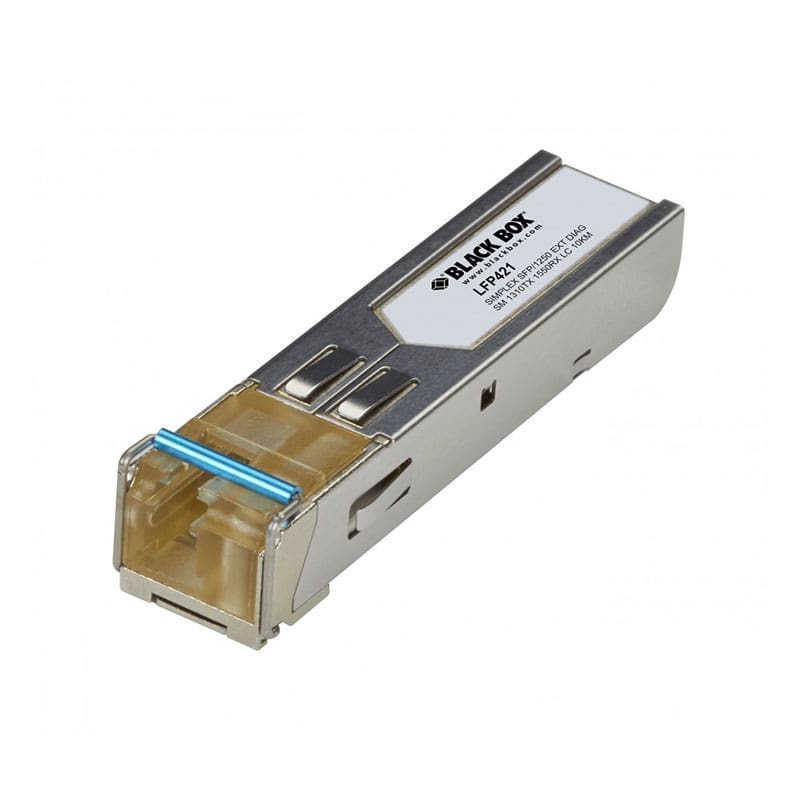

LFP421 Black Box with Extended Diagnostics – SFP (mini-GBIC) transceiver module

LFP421 Technical Specification

Black Box with Extended Diagnostics – SFP (mini-GBIC) transceiver module

Brand: Black Box
Product Line: Black Box
Model: with Extended Diagnostics
Manufacturer: Black Box

Network & Communication
Connectivity Technology: Wired
Data Transfer Rate:1.25 GBps
Form Factor: Plug-in module
Max Transfer Distance: 6.2 miles
Optical Wave Length: 1310 (TX) / 1550 (RX) nm
Product Type: SFP (mini-GBIC) transceiver module

Connectivity
Interface Provided: 1 x – LC single-mode female x 2

Cables
Left Connector SD Type: LC single-mode

Technical Information
Max Operating Temperature: 185 degree Fahrenheit
Min Operating Temperature: -40 degree Fahrenheit
Operating Humidity: 0 – 85% (non-condensing)

Product Information
Packaged Quantity: 1

Dimensions & Weight
Height: 0.7 inch
Weight: 0.81 ounce
Width: 0.6 inch
Depth: 2.8 inch

Certifications & Listings
Compliant Standards: IEC 825-1, Laser Class 1, MSA
ENERGY STAR Certified: No
TAA Compliant: Yes
