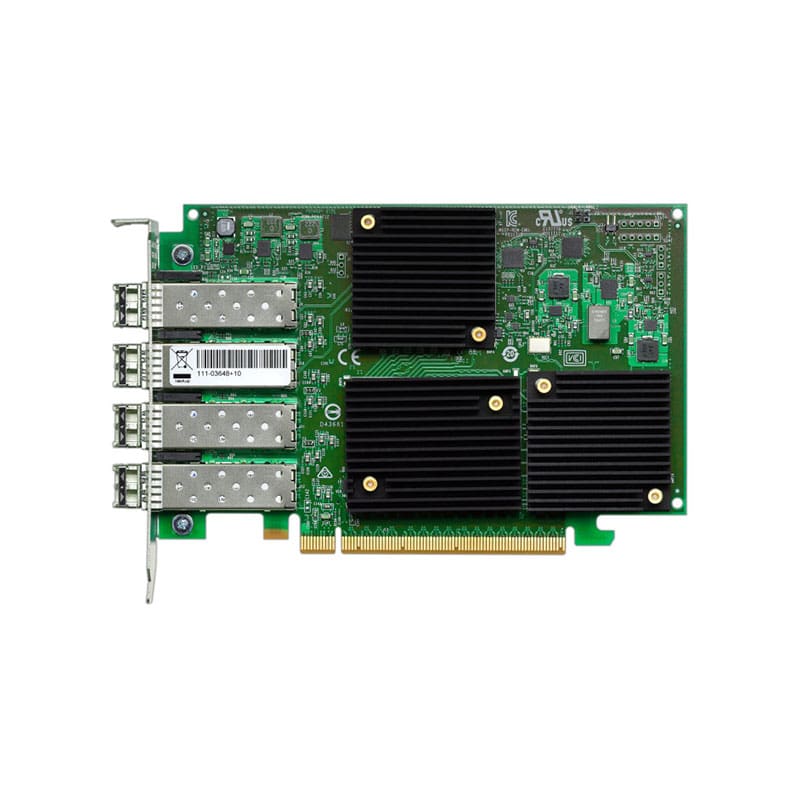

LPE31004-M6-SIO Broadcom 4-port 16G FC Short Wave Optical
LPE31004-M6-SIO Overview
High-Speed Connectivity: The HBA supports up to four 16G Fibre Channel (FC) ports, each of which can transfer data at speeds of up to 16 Gbps. This means that data can be transferred quickly and efficiently between storage devices and servers, resulting in improved application performance and reduced latency.
Full-Height Form Factor: The HBA comes in a full-height form factor, which means that it takes up a full-height PCIe slot on the server motherboard. This allows for maximum bandwidth and ensures that the HBA can handle the high-speed data transfers that are required in enterprise-level data centers.
$539
LPE31004-M6-SIO Technical Specifications
Broadcom 4-port 16G FC Short Wave Optical – Lc SFP+ Full-height Storage HBA
Manufacturer: Broadcom
Part Number or SKU# LPE31004-M6-SIO
Type : Controller
Controller Type: Fiber Channel
Technical Information
Optical Data Rates: 14.025 Gb/s (1600mb/s), 8.5 Gb/s (800mb/s), 4.25 Gb/s (400 Mb/s) (auto-detected).
Hardware Environment : Powerpc, Sparc, Intel X86, X64
Ports : 4
Optics: Short Wave Lasers With Lc Type Connector Fixed Optics
Host Bus Type : Pcie Gen3 X16
I/o Controller: Xe501
