LPE32000-M2 Technical Specifications

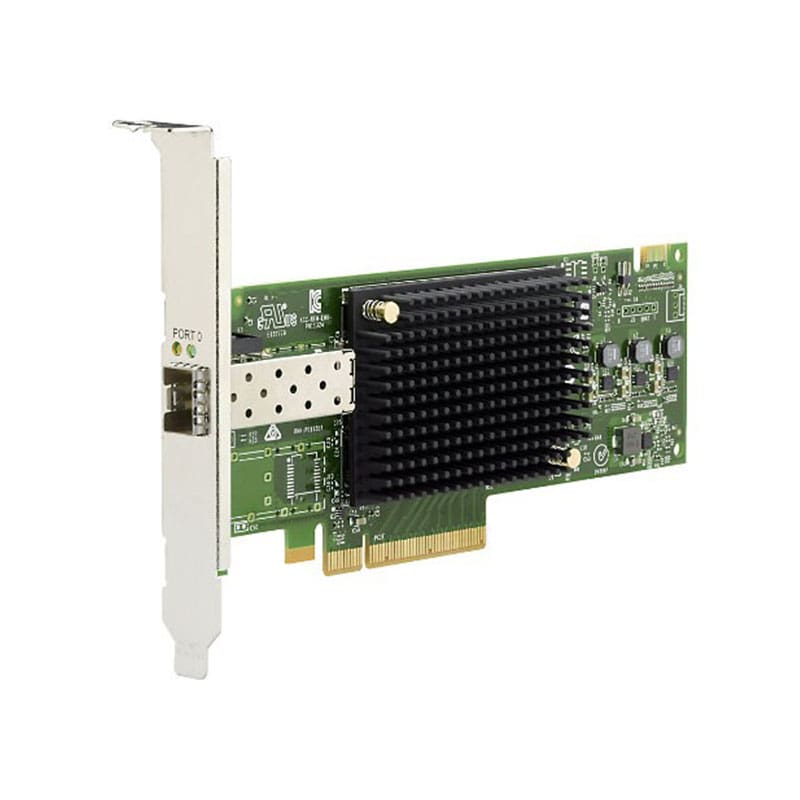

Emulex LPe32000-M2 Gen 6 (32Gb), single-port HBA Host Bus Adapter PCIe 3.0 x8 32Gb Fibre Channel Gen 6 x 1
Brand: Emulex
Product Line: Emulex
Model: LPe32000-M2 Gen 6 (32Gb), single-port HBA
Manufacturer: Emulex Network Systems
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 32Gb Fibre Channel Gen 6 (Short Wave)
Data Transfer Rate: 28.05 GBps
Form Factor: Plug-in card
Host Interface: PCI Express 3.0 x8
Low Profile: Low profile
PCI Specification Revision: PCIe 3.0
Product Type: Host bus adapter
Connectivity
Port Quantity: 1
Network & Adapter Ports: 32Gb Fibre Channel Gen 6
Technical Information
Max Operating Temperature: 131 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 – 95% (non-condensing)
Product Information
Packaged Quantity: 1
Included Items
Included Accessories: Low-profile bracket
Dimensions & Weight
Height: 2.7 inch
Width: 6.6 inch
