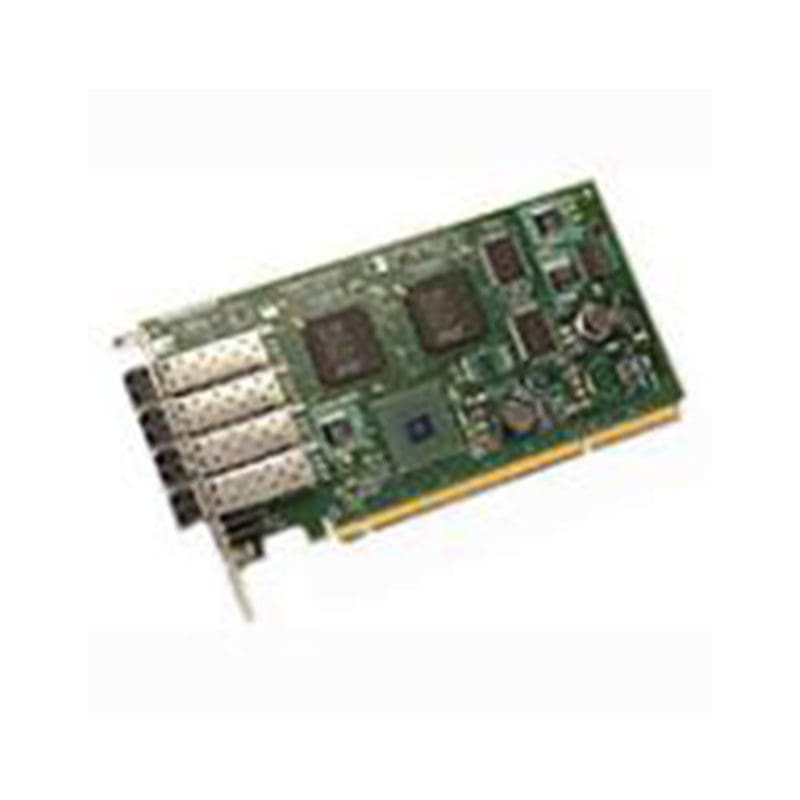

LSI00060-F Lsi Logic 4-port 4gbps Fibre Channel Host Bus Adapter

LSI00060-F Technical Specifications

Lsi Logic 4-port 4gbps Fibre Channel PCI-X Host Bus Adapter

Manufacturer Part Number LSI00060-F
Brand Name LSI Logic
Product Type Fibre Channel Host Bus Adapter
Technical Information
Total Number of Fibre Channel Ports 4
Number of LC Ports 4
Data Transfer Rate 4 Gbit/s
Media Type Supported Optical Fiber
Fiber Mode Supported Multi-mode
Host Interface PCI-X 1.0a
Topology Point-to-Point
Arbitrated Loop
Switched Fabric
Fibre Channel Class Supported Class 2
Class 3
I/O Expansions
Expansion Slot Type SFP
Physical Characteristics
Form Factor Plug-in Card
Card Height Full-height
Height 6.9″
Width 4.2″
