LSI00202 Technical Specifications

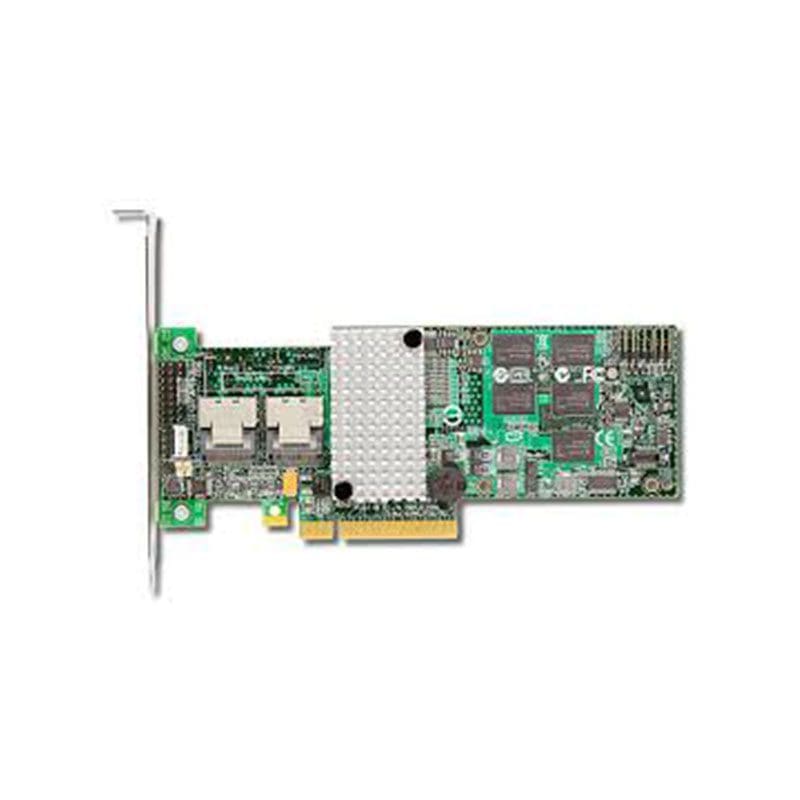

LSI Logic MegaRAID SAS 9260-8i 512MB Cache 8-Port SAS 6Gbps / SATA 6Gbps PCI Express 2.0 x8 MD2 Low Profile RAID 0/1/5/6/10/50/60 Controller Card Kit
Manufacturer Part Number LSI00202
Brand Name LSI Logic
Product Type SAS Controller
Technical Information
Host Interface PCI Express x8
RAID Supported Yes
RAID Levels 0
1
5
6
10
50
60
Interfaces/Ports
Total Number of SAS Ports 2
Number of SAS Ports (Internal) 2
SAS Connector Details 2 SFF-8087
Physical Characteristics
Height 2.5″
Width 6.6″
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
Environmentally Friendly Yes
Environmental Certification RoHS
